rf IDEAS KT-AIRIDM-UU WAVE ID Playback, Mifare Starter Kit w/ USB Writer & Playback

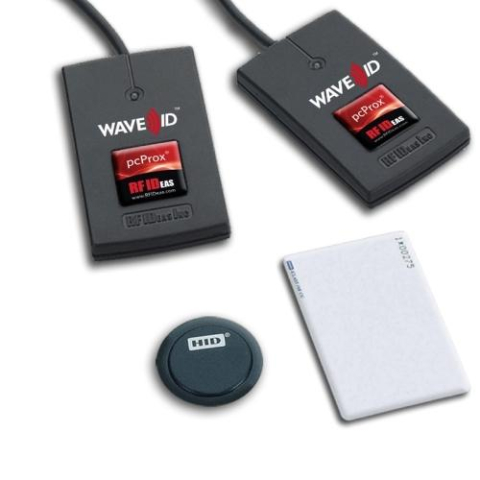

This ready-to-use, Playback Starter Kit provides everything needed to use smart cards with existing applications and embedded controllers. The kit includes a WAVE ID Writer, WAVE ID Playback Reader, WAVE ID Card Manager software and sample cards. The kit solves computer access control issues by providing access to existing back-end server infrastructures and building access investments through contactless smart cards without adding software to the client or server. The costs associated with training, pilot tests, software licenses, upgrades, incompatibilities are negligible since no software is deployed.

Features

Easy Interface: No software is required on the server or client. Utilizes a plug-n-play USB, RS-232, or Wiegand output. The Playback seamlessly interfaces with any system or existing software. It reads and sends back as keystrokes. User data provides seamless integration, which can be used for a one- or two-factor logon application. Existing software such as; PLCs, point-of-sale terminals, and other equipment can be interfaced with the Playback RS-232 reader. The reader sends data as ASCII characters.

Multi-Application Solution: Allows for several applications to be stored on a single contactless credential.

Security: Contactless smart cards offer unique features, such as cryptographic data storage, mutual authentication, secure reading/writing of data, and user-defined access keys.

Inclusive and easy setup: The Starter Kit includes everything needed to use contactless cards for operating system or application log-on, mag-stripe replacement, and other applications.

Medical/Healthcare HIPAA Compatible: Meets medical and healthcare HIPAA requirements when used as a logical access solution.

Wiegand Compatibility: The WAVE ID Playback Wiegand easily outputs data to any device accepting Wiegand data.

Compatibility: Supports any operating system with USB: Windows 2000/XP/Vista, Citrix, UNIX, Linux, Macintosh, thin clients, and more.

The Starter Kit includes everything you need to begin using contactless cards, tags, and labels for operating system or application log-on, mag-stripe replacement, and other applications.

The WAVE ID 13.56 MHz product line meets a variety of needs in multiple situations. These contactless smart card reader products leverage current NXP MIFARE badge investments, as well as existing control systems while expanding technologies and applications with a single badge solution.

Applications

PC/LAN access control

Application log-on

Server access control

Time and attendance

Form filler to existing software applications

Truck scales/job tracking PLC and embedded controllers

Manufacturing kiosk log-on

Technology migration
