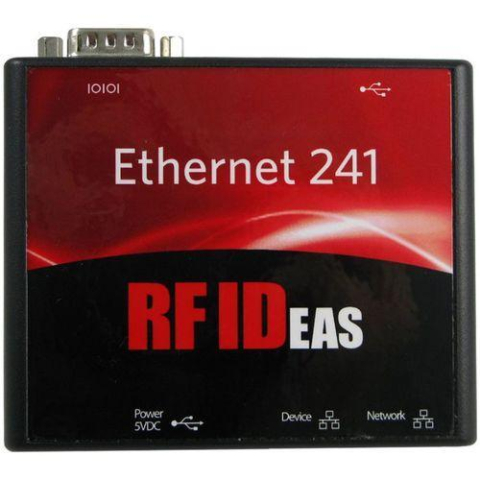

rf IDEAS C-N11NCK4 Ethernet 241 Converter USB & Pin 9 Serial w/ Power Supply

The Ethernet 241 was designed to allow an RF IDeas card reader and an application device to simultaneously communicate via an Ethernet connection, using a single network drop. The Ethernet 241 acts as a two-port switch that provides a pass-thru Ethernet port for a printer and a second Ethernet port that is built into the device.

The 241 device has two Ethernet connectors designated as the Network port and Printer port. The Ethernet 241 provides one USB port, one RS-232 DB9 port and one 5 VDC port that is used to supply power to the unit via the supplied power adapter.

The USB and serial ports are intended for use by RF IDeas' pcProx, pcSwipe and MFP24 readers. Both USB and serial ports operate independently and can support simultaneous card presentations.

Details

The Ethernet 241 connects to a network using autonegotiate (default), 10 Mbps half duplex, 10 Mbps full duplex, or 100 Mbps full duplex. The device has the ability to use DHCP or Static IP addresses and allows all Ethernet connections and ports to be configurable.

The printer device retains its own IP and MAC address. The Ethernet 241 will pass through all communication between the printer and the network untouched. Messages for the 241 device are not sent to the printer.

There are two reader ports - a serial port and a USB port. Either one (or both) can be used, allowing for various RF IDeas' readers to be integrated. For configuration, the pcProx Config Utility can establish a tunnel to the pcProx readers through the Ethernet 241. In addition, automated scripts will allow ACP commands to be sent to the reader upon reader initialization or the reading of card data.

The Ethernet 241 can operate as a client or a server for transmitting card and reader data. In client mode SSL (Secure Socket Layer) can be optionally enabled for secure encryption of card data during transmission.

The Ethernet 241 Discovery Tool PC application allows for easy maintenance of multiple Ethernet 241 devices on a network.

Features

• Network Addresses - The Ethernet 241 provides two, one for the device and one for the printer.
• Address Assignment - DHCP or Static
• Reader Configurability - Through pcProx Config Utility or ACP Commands

Applications

• Secure Printing
• OEM

For more information, please see Manual
