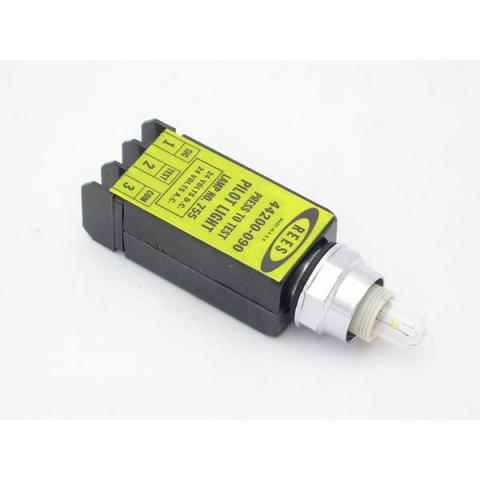

Rees 44200-090 Miniature Pilot Light, Resistor Load

The pilot light body is made from polycarbonate and is sonically welded together.  The zinc die cast housing will mount in a 0.69 in. dia. hole.  Each captive terminal on the terminal block will accept # 14 AWG stranded wires. These lights are generally found on machine control panels as circuit/function indicators. Replacement lamps and lenses can be found in the accessories section for 30.5mm devices.

Electrical Ratings

• HEAVY DUTY - A600 / N300
• Listed under UL 508 - File # E 58589
• Certified under CSA C22.2 - File # LR 3648

Environmental Temperature Range

• Operating:  +32oF to +131oF (0oC to +55oC)
• Storage:  -40oF to +185oF (-40oC to +85oC)
