Rees 44200-000 Miniature Pilot Light Test

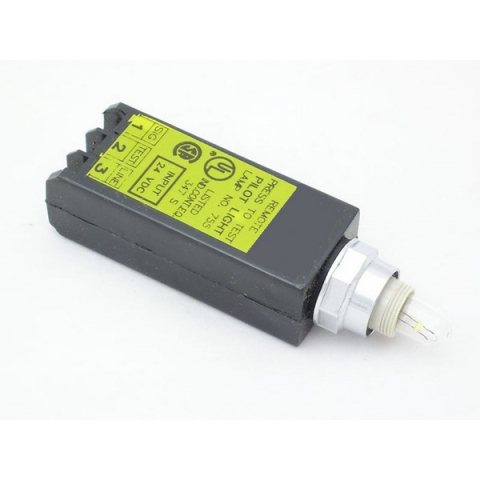

The pilot light body is made from polycarbonate and is sonically welded together.  The zinc die cast housing will mount in a 0.69 in. dia. hole.  Each captive terminal on the terminal block will accept (2) # 14 AWG stranded wires.

• NEMA 12/13, IP 65
• Environmentally rated NEMA 12/13

These lights are generally found on machine control panels as circuit/function indicators.

Replacement lamps and lenses can be found in the accessories section for 30.5mm devices.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

Environmental Temperature Range

Operating:  +32^oF to +131^oF (0^oC to +55^oC)

Storage:  -40^oF to +185^oF (-40^oC to +85^oC)

Note:  Operating temperatures at 0^oC are based on the absence of freezing moisture and liquids.
