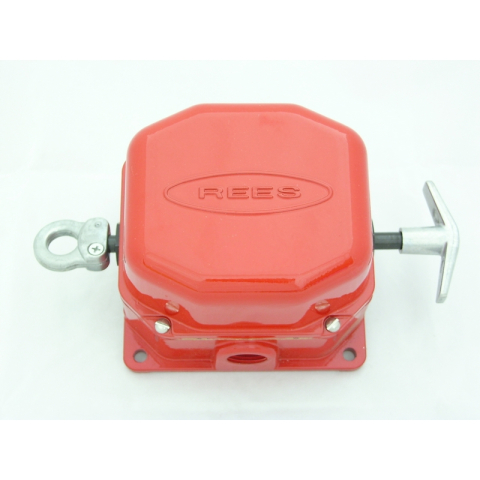

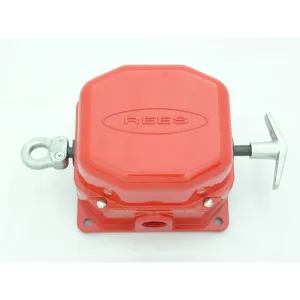

Rees 04944-220 Cable Operated Switch Red, Trip Force 15 lb

Features:

The following "slack cable" style switch has 2 NO and 2 NC contacts. This switch is particularly competent for use in Emergency Stop applications as well as for ordinary circuit control.

The housing is made from high quality die-cast aluminum and powder coated painted red.

• Manual reset with "Positive Break" contacts
• Gold plated contacts eliminate high resistance tarnishing
• Nema 12/13, IP 65
• May be mounted for right or left hand pull

Each captive terminal will accept (2) #14 AWG stranded wires. Each switch is supplied with a santoprene gasket, which provides an oil tight seal upon installation and protects against corrosive environments.

There are two 3/4" NPT conduit openings. The maximum cable recommended cable length is 200 feet with a maximum interval support of 10 feet.

The mechanical life of the switch is 150,000 operations.

This switch can be installed on various conveyor installations and provides a constant access for emergency or normal stopping.

The rugged construction and long term reliability makes this cable pull switch well suited to function within various environments.

Electrical Ratings:

• "HEAVY DUTY - A600 / N300"
• Listed under UL 508 - File # E 58589
• Certified under CSA C22.2 - File # LR 3648
• CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range:

• Operating: +32°F to +131°F (0°C to +55°C)
• Storage: -40°F to +185°F (-40°C to +85°C)
• Note: Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING

These products should only be used where point-of-operation guarding devices have been properly installed & maintained so that appropriate OSHA and ANSI B11.1 regulations & standards are met. Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
