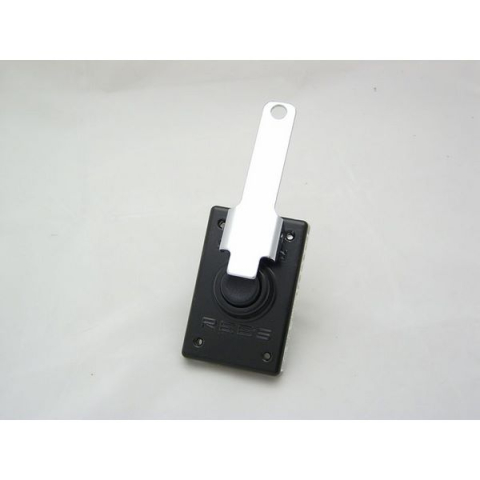

Rees 03275-000 Rope Operated Switch (Heavy Duty - A600 / N300)

This switch is a slack cable style with 1 NO and 1 NC momentary 'Slow-Make - Slow Break' contacts.  This switch also has 'Positive Break' contacts and may be used as an emergency stop switch.

This low activating force switch is basically a pushbutton device operated through a nickel plated operating lever attached to the cover.  Care must be taken when choosing and installing the operating rope because the low operating force can be easily overcome and the switch will not trip or reset properly.

This switch requires a suitable enclosure which must be purchased separately.  A sealing gasket and four mounting screws are supplied with each switch.

Each captive terminal will accept (2) #14 AWG stranded wires.

• Low operating force
• Gold plated contacts eliminate high resistance tarnishing
• Positive Break contacts
• Nema 12/13, IP 65

The maximum recommended rope length is 33 feet with a maximum interval support of 10 feet when horizontal.

The mechanical life of the switch is in excess of 1,000,000 operations.

Electrical Ratings

HEAVY DUTY - A600 / N300

Listed under UL 508 - File # E 58589

Certified under CSA C22.2 - File # LR 3648

CE Compliant IEC/EN 60947-5-1

Environmental Temperature Range

Operating:  +32oF to +131oF (0oC to +55oC)

Storage:  -40oF to +185oF (-40oC to +85oC)

Note:  Operating temperatures at 0oC are based on the absence of freezing moisture and liquids.

WARNING - DANGER

These products should only be used where point-of-operation guarding devices have been properly installed and maintained so that appropriate OSHA and ANSI B11.1 regulations and standards are met.  Misapplication of the products on machinery lacking effective point-of operation safeguards can cause serious injury to the operator of that machinery.
