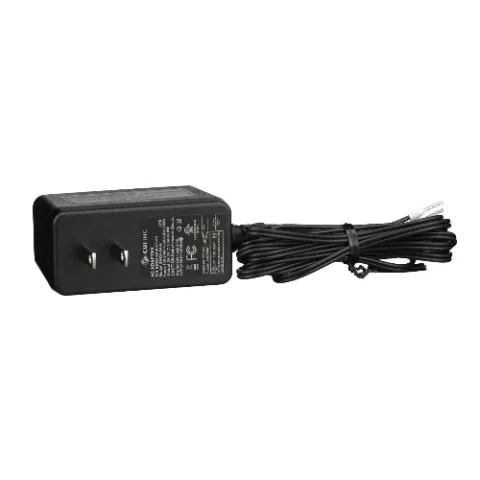

PureAire 45101 24V Power Supply with US Plug for Horn/Strobe

Power Supply 24V - USA, Canada, Mexico, Japan

Features:

• Universal input (100~240 Vac)
• Single regulated output, 24 VDC, 1 Am
• Short circuit protection
• UL/cUL safety approvals<
• Level V efficiency

INPUT

• parameter conditions/description min typ max units
• voltage 90 264 Vac
• frequency 47 63 Hz
• current 0.8 A RMS
• inrush current1 at 115 Vac, full load, cold start
• leakage current 0.25 mA
• no-load power consumption 0.3 W
• Notes: 1. 24 V model, no damage at 230 Vac, cool start

OUTPUT

• parameter conditions/description min typ max units
• line regulation ±1 %
• load regulation ±5 %

PROTECTIONS

• parameter conditions/description
• short circuit protection output shut down and auto restart

SAFETY & COMPLIANCE

• parameter conditions/description min typ max units
• isolation voltage input to output at 10 mA for 1 minute 3,000
• isolation resistance input to output at 500 Vdc 100 MΩ
• safety approvals UL 60950-1

EMI/EMC FCC Class B

• RoHS compliant yes

ENVIRONMENTAL

• parameter conditions/description min typ max units
• operating temperature 0 40 °C
• storage temperature -10 70 °C
• operating humidity 20 80 %
• storage humidity 10 90 %

MECHANICAL

• parameter conditions/description min typ max units
• dimensions  2.12in x 2.12in x 1.05in (53.8mm x 53.8mm x 26.7mm)
• weight .4lbs (.1kg)
• input plug fixed US
• Country of Origin: China
• Harmonized Tariff Code: 8504.40.9510
