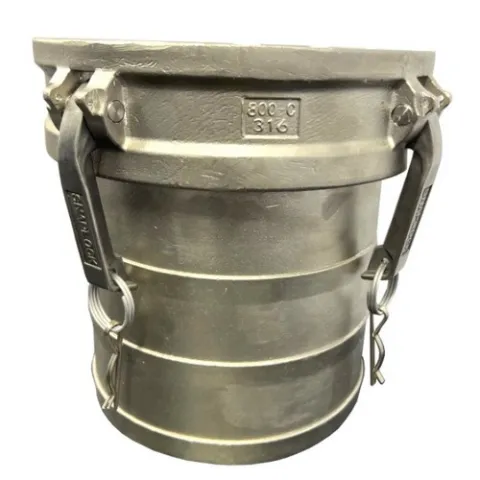

Pro Flow Dynamics C800-SS-PTK-316 8" Female Camlock & Groove Coupler x 8" Hose Shank, Type C, Stainless Steel 316

8" Stainless Steel Cam and Groove Type C Coupler x 8" Hose Shank.

Uses: The 8" Type C Female Coupler has an 8" Hose Barb and enables you to install a 8" Female Camlock Hose Coupling into a 8" Diameter Hose.

Compatibility:

• 8" Hose Shank can slide into any 8" diameter hose.
• 8 inch Type C Female Camlock portion can connect to a 8 inch Male Camlock of the PTK Style.

Installation:

• Slide the Hose Shank Portion into a 8" Hose and fasten with band clamps or a crimp collar.
• Then connect the Type C Coupler to a 8" Male Camlock hose fitting and close all 4 of the cam arms.

Style:

• 8" PTK Style - Compatible with PT Coupling and with Kuriyama.
• Not Compatible with the larger Neco 8" Style.

Applications:

• Buna-Nitrile Rubber Gasket suitable for Fuel Service or Industrial and Commercial Flow Systems.
• The 8" Cams are often used for water hose and discharge hose enabling quick connections.

Cam Arms: 4 x Stainless Steel Handle Arms.

Materials: Stainless Steel 316.
