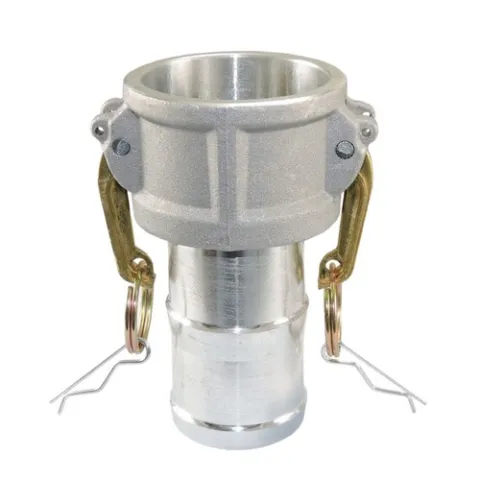

Pro Flow Dynamics C100-AL 1" Female Camlock & Groove Coupler x 1" Hose Shank, Type C, Aluminum

Type C couplers are normally used with Type E adapters but can also be used with Type A and Type F adapters and Type DP (Dust Plug) of identical size.

Uses:

• Used to install a Female Cam Lock Quick Connect into a Hose End.
• Used to connect with a Male Adapter of the same size.

Installation:

• Insert the Hose Shank portion of the fitting into a Hose End and fasten with a hose clamp or crimp collar.
• Then slide the Type C Coupler over a Male Cam Fitting and close the two cam handles.
• Open the cam arm levers and remove the adapter for a quick disconnect.

Material: Aluminum.
