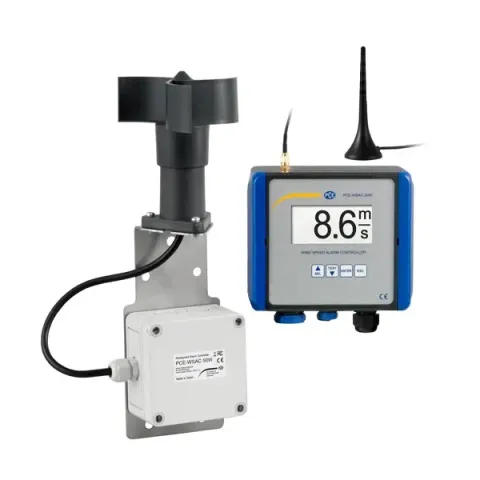

PCE Instruments PCE-WSAC 50W 230 Radio Anemometer Warning System 230 V AC Supply Voltage

Wind Speed Meter PCE-WSAC 50W 230 is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analyzed before commissioning a wind turbine. The Wind Speed Meter PCE-WSAC 50W 230 is equipped with alarm relay for a pre-alarm or main alarm.

Due to the high measuring range of up to 50 m / s of the anemometer, stormy gusts can also be monitored. The radio range of the anemometer is in the open field up to 750 m / 2500 ft in the free frequency band of 2.4 GHz. When installing the display of the anemometer PCE-WSAC 50W 230 in buildings, a range of up to 60 m / 200 ft can be achieved for the wind sensor. Due to the integrated 4 ... 20-mA analogue output of the wind alarm display, the measured data can also be transferred to other controllers for evaluation.

Features:

• Robust plastic housing
• Units: km / h, mph, m / s
• 4 ... 20-mA analog output
• 128 x 64 pixel LC display
• Alarm relay
• Measuring range up to 180 km / h
• Durable stainless steel ball bearings
• Ambient temperature -20 ... 70°C / -4 ... 158°F
• Radio transmission

Includes:

• 1 x PCE-WSAC 50W 230 Wind Speed Meter
• 1 x Wind sensor of the anemometer
• 1 x Self-leveling additional bracket
• 1 x Radio antenna
• 1 x Battery Monocell D 1.5V DC
• 1 x User manual
