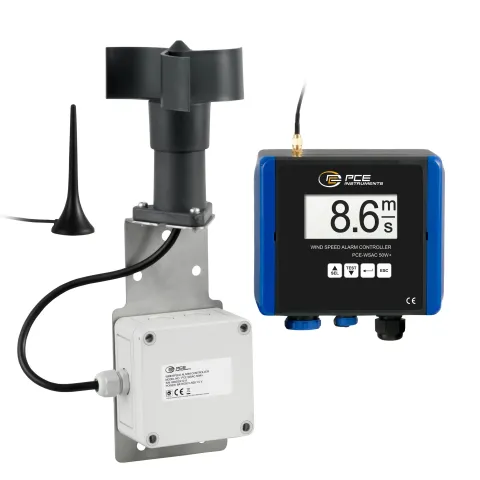

PCE Instruments PCE-WSAC 50W+ 24 Environmental Meter with Radio Sensor Power Supply 24 V DC

Environmental Meter with radio sensor / data logger / wind monitoring on construction cranes / 4 ... 20 mA analogue output / power supply 24 V DC

The Environmental Meter is primarily used to measure and monitor the wind load on cranes or wind turbines. Furthermore, the wind situation can be measured and analysed before commissioning a wind turbine.

Thanks to the Environmental Meter's high measurement range of up to 50 m/s, even stormy gusts can be monitored. The radio range of the Environmental Meter is up to 750 m in the open field in the free frequency band of 2.4 GHz. When installing the display of the Environmental Meter indoors, a range of up to 60 m to the wind sensor can be achieved. Thanks to the integrated 4 ... 20 mA analogue output of the wind warning system display, the measurement data can also be transferred to other control systems for evaluation.

If the wind speed values are higher than the preset values, a pre-alarm is switched on before the alarm is issued. Both alarms are signalled visually and acoustically on the Environmental Meter with data logger. If the pre-alarm is activated, a yellow LED will flash on the front of the device and a beeper will emit a periodic warning sound. If the normal alarm needs to be activated, the red LED will flash and the device will beep continuously.

Features:

• robust plastic housing
• units: km/h, mph, m/s
• 4 ... 20 mA analogue output
• 128 x 64 pixel LC display
• alarm relay
• measurement range up to 180 km/h
• durable stainless steel ball bearings
• ambient temperature -20 ... +70 °C
• radio transmission
• data logger for 30000 data records

Includes:

• 1 x Environmental Meter PCE-WSAC 50W+ 24
• 1 x wind speed sensor (incl. standard bracket)
• 1 x self-levelling additional bracket
• 1 x radio antenna
• 1 x battery mono cell D 1.5 V DC
• 1 x user manual
