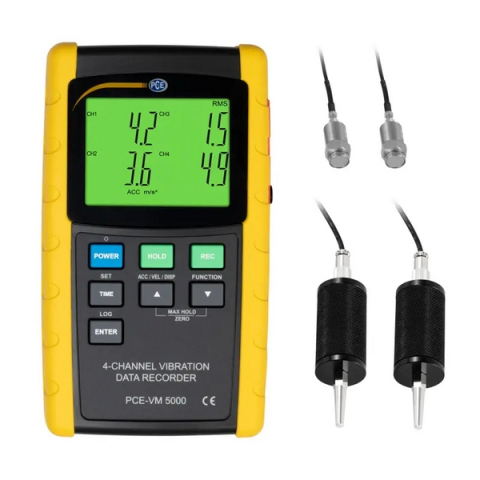

PCE Instruments PCE-VM 5000-KIT 4-channel Vibration Meter Kit with Vibration sensor

The 4-channel PCE-VM 5000 Vibration Meter is especially designed for precise measurements of vibrations. Despite the fact that the 4-channel vibration Vibration Meter is a complex and sensitive device, its hardened design enables operation for many years. The PCE-VM 5000 Vibration Meter indicates a large, lighted LCD display for four channels of simultaneous vibration measurements from remote vibration sensors. The Vibration Meter measures in a frequency range of 10 Hz to 1 KHz for speed, acceleration, and displacement. The captured data values are saved on a SD memory card where you can choose between automatic and manual data storage. By means of the SD memory card the data can be transferred afterwards to a computer in order to analyze it in an excel file. With the PCE-VM 5000 Vibration Meter you can choose between different measurement units: for acceleration, the unit m/s², g, and ft/s² are able to be selected; for speed, mm/s, cm/s and inches/s can be used; and for the displacement, mm and inches can be choosen.

Features:

• Acceleration, speed, and displacement
• Long-lasting battery
• Precise measurement
• Large, LCD display with background lights
• Different measurement units
• Data storage on SD card
• Frequency range 10 Hz ... 1 KHz
• Evaluation of data on the PC with Excel

Includes:

• 1 x Vibration Meter PCE-VM 5000-KIT
• 2 x Sensor VB-83 with cable and magnetic base (1.2m / 3.9 ft)
• 2 x Vibration sensor VB-84
• 8 x 1.5V AA batteries
• 1 x Transportation case
• 1 x Instruction manual
