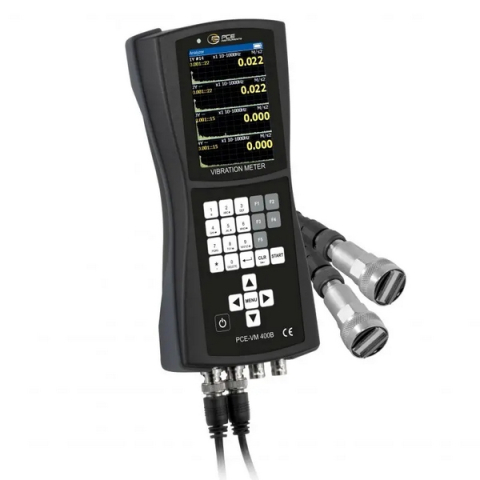

PCE Instruments PCE-VM 400B Vibration Meter with 4 Channels for Measurement of Acceleration Velocity Displacement and Rotational Speed

The vibration meter is a technically advanced instrument for the precise measurement and evaluation of vibrations in industrial applications. It enables the simultaneous measurement of vibrations on shafts and bearings across four independent channels. Equipped with high-quality piezoelectric acceleration sensors, even the smallest vibrations can be accurately captured.

The vibration meter has various measurement functions, including acceleration, velocity, displacement, and rotational speed, to cover a wide range of applications. It also offers the capability of balancing with up to 8 correction planes to counterbalance imbalances in rotating machinery. Additionally, the vibration meter allows for route measurement, specifically for recurring measurements at identical measuring points.

For data transmission and storage, the device is equipped with a USB interface and an internal storage capacity of 4 GB. The vibration meter is robustly constructed and protected against dust and moisture to ensure its operation in demanding industrial environments.

Engineers and technicians can utilize this vibration meter to precisely monitor and analyze machines, ensuring smooth operation and an extended lifespan.

Features:

• 4 channels for measuring and evaluating vibrations
• Measurement on shafts and bearings
• Reliable piezoelectric acceleration sensors
• Wide frequency range: 1 ... 25000 Hz
• Acceleration measurement range: 0.001 ... 200 m/s²
• Velocity measurement range: 0.001 ... 200 mm/s
• Balancing - up to 8 correction planes
• Evaluation according to ISO 10816
• USB interface and 4 GB data storage

Includes:

• 1 x Vibration Meter PCE-VM 400B
• 2 x Vibration Sensor
• 1 x Infrared Sensor
• 1 x Mount for Infrared Sensor
• 1 x Reflective Band
• 1 x Power Supply 5V/1A
• 1 x Micro-USB Cable
• 1 x Plastic Case
• 1 x User Manual
