PCE Instruments PCE-VM 10 3-Axis Accelerometer for Machines and Systems

 3-Axis Accelerometer for machines and systems / RS232C interface / AC output for headphones / 3-axis piezoelectric acceleration sensor / Incl. sensor tips

The 3-Axis Accelerometer enables fast and precise measurement of acceleration, vibration displacement and vibration velocity in three directions (X, Y, Z) or for a single axis. It is used in accordance with ISO 2954 for the detection of unbalance, misalignment and mechanical faults in rotating machinery and is ideal for quality control, commissioning and predictive maintenance on site.

With a frequency range of 10 Hz to 10 kHz, it detects a wide range of vibrations, making it versatile for industrial applications. The Accelerometer weighs just 163 g / 0.4 lbs and is easy to read even in difficult conditions thanks to the backlit 2-inch LCD display. In addition, the Accelerometer switches off automatically after 30 minutes of inactivity to save energy.

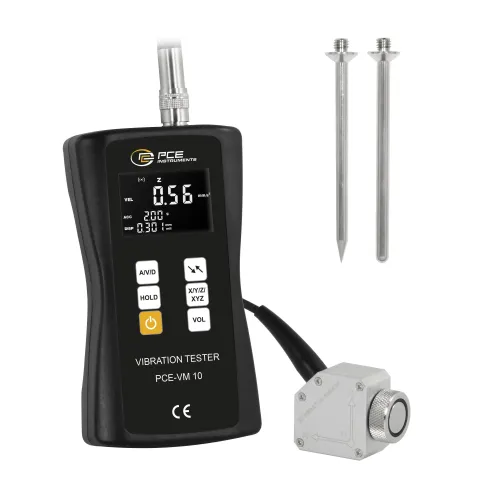

The 3-Axis Accelerometer has a 3-axis piezoelectric accelerometer with three mounting options: a magnetic sensor and two measuring tips (one conical and one spherical) that can be attached to the sensor. These accessories enable precise and versatile vibration measurements on various machines and surfaces. This makes the device a handy and powerful tool for industrial vibration measurements. It supports various units such as mm/s, inch/s, m/s², g, ft/s², mm and mil and has a measurement function that displays the maximum measured values.

Features:

•  Measurement of acceleration, velocity and displacement
• Frequency range: 10 Hz ... 10000 Hz
• 2 inch LCD display
• Max. Measuring function
• Units: mm/s, inch/s, m/s², g, ft/s², mm, mil

Includes:

• 1 x PCE-VM 10 3-Axis Accelerometer
• 1 x Measuring sensor X-, Y-, Z-axis
• 1 x Magnetic sensor
• 2 x Measuring tip
• 4 x AAA 1.5V batteries
• 1 x Transport case
• 1 x Instruction manual
