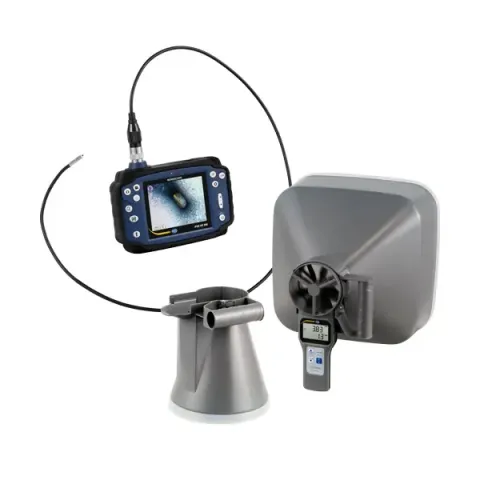

PCE Instruments PCE-VE 200-KIT1 Industrial Borescope Kit with Air Flow Meter

Industrial Borescope

PCE-VE 200 is a video inspection camera, for nondestructive evaluation (NDE) and machine diagnostics. The PCE-VE 200 video borescope provides excellent image quality at an affordable price. An ideal tool for diagnosing hard-to-reach places, the scope can be rotated 180 ° and offers 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The borescope stores the recorded images and videos directly to a micro SD card memory. The 3.28 ft cable length and 0.18 in cable diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

Air Flow Meter PCE-VA 20 -SET incl. Flow hood

The impeller anemometer is a measuring instrument for various wind related parameters. It has got an impeller diameter of ten centimeters. Moreover, if required, it is possible to order a set of flow hoods which provide a fast and reliable method which helps to use the 100 mm large impeller head optimally. The flow hoods can be ordered only as a set which consists of one round and one square flow hood. The round flow hood comes with a diameter of 210 mm and the square flow hood has the dimensions of 346 x 346 mm. This allows checking ventilation systems, air conditioning systems or similar with the help of the flow anemometer. For that purpose the flow hood is mounted on the impeller anemometer and then the whole construction is placed on the air source to be tested. The rubber at the end of the flow hood ensures that the checked chambers are closed.

The impeller anemometer PCE-VA 20 allows measurements of wind speed, flow, temperature, relative humidity, dew point and wet bulb temperature. This is a versatile environmental meter, which provides extensive measuring results. The impeller anemometer also provides extensive features such as an extreme value measurement, HOLD function, backlight, automatic power off and a low battery charge warning function. It all makes it and as much easy and comfortable as possible for the user.

Features:

Industrial Borescope

• 3.5 in LCD display
• 3.28 ft cable length
• 0.18 in cable diameter
• 1/8 in camera head / CMOS chip image sensor
• 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
• Micro SD card memory
• Micro USB 2.0 and TV outputs

Air Flow Meter

• incl. Flow hood
• 10 cm diameter impeller
• Backlight
• Automatic power off
• Extreme value measurement
• HOLD function
• Low battery indicator

Includes:

• 1 x PCE-VE 200 Industrial Borescope ***Not for medical use***
• 1 x USB cable
• 1 x USB adapter
• 1 x User Manual
• 1 x Impeller Anemometer PCE-VA 20-SET
• 4 x battery (AAA)
• 1 x flow hood square
• 1 x flow hood round
• 1 x Carrying Case
• 1 x User Manual
