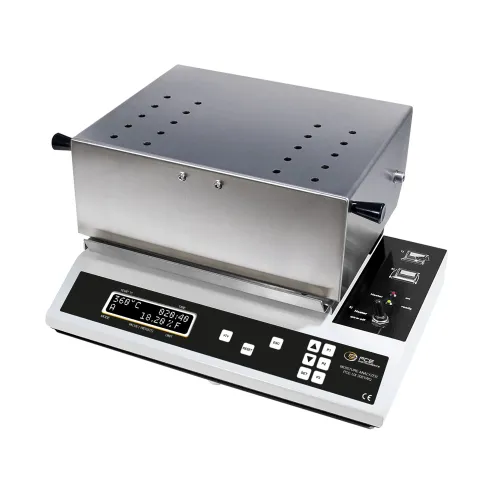

PCE Instruments PCE-UX 3081WQ Analytical Balances for Light and Bulky Materials Weighing Range 400 gram

Analytical Balances for light and bulky materials / weighing range 400 g / adjustable heating temperature / 4-inch LC display / 4-digit device ID / large drying tray / software (optional)

The Analytical Balances has been specially developed for light and bulky materials. It has an exceptionally large drying pan and is suitable for applications in the fields of raw material extraction, production, processing, research and recycling.

With a maximum weighing capacity of 400 g, a volume of 360 cm³ and a high measuring resolution of 0.001 g, the Analytical Balances enables precise and reliable moisture measurements. The scale works according to the principle of drying with simultaneous weighing: The weight loss is continuously recorded and displayed as a percentage of the total mass. Equipped with a heater output of 2 x 400 W and an adjustable heating temperature of 105 °C to 360 °C, the Analytical Balances offers fast and flexible drying of samples. The device provides various parameters for analysis, including % moisture, % dry matter, % moisture ATRO as well as g residual weight/kg and residual weight.

The practical functions include an automatic switch-off function that stops the drying process when the constant weight is reached. This can be flexibly set to three criteria: Query start, query interval and weight loss per query interval. A timer with an adjustable duration of 1 to 180 minutes is also available. A menu lock protects the parameters against unintentional adjustment; the menu can be locked by PIN, whereby the CAL menu item remains accessible. The scale offers up to 9 programme memory locations for easy handling of drying profiles.

Data is output via an RS-232 interface or a USB connection. Optional software is available for transferring data to a PC. GLP-compliant documentation is carried out via the Data Bridge, as the balance does not have an integrated printer. However, an external printer can be purchased separately to output the measurement data directly. A 4-digit device ID also enables the unique allocation of the measurement data. The Analytical Balances is ideal for applications in the wood, agricultural and plastics industries, e.g. for chips, animal feed or granulates. It delivers precise results even at very low moisture contents.

Features:

• Weighing range: 400 g
• Sample weight: Min. 20 g
• Sample volume: Max. 360 cm³
• Weighing pan inside: 230 x 97 mm / 243 x 111 mm
• Adjustable heating temperature: 105 ... 360 °C
• Radiator power: 2 x 400 W
• Time setting: 1 ... 180 min
• Menu lock

Includes:

• 1 x Analytical Balances PCE-UX 3081WQ
• 2 x stainless steel drying tray sample carriers
• 1 x tray tongs
• 1 x power cable
