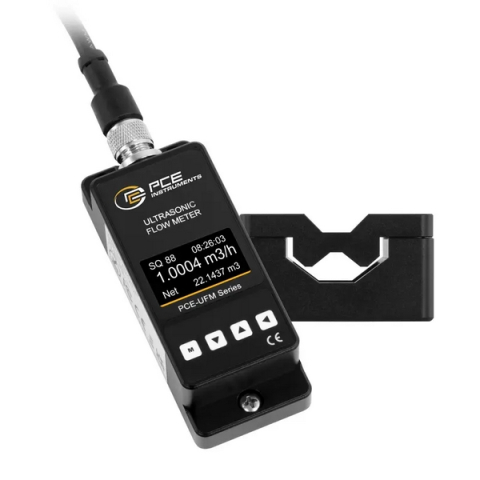

PCE Instruments PCE-UFM 4 PCE-UFM Series Portable Ultrasonic Flow Meter for Pipes with a Diameter of DN4

This portable ultrasonic flow meter offers the capability to measure flow rates from ±0.1 m/s to ±5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN4 and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe.

The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface.

With a power supply range of 9 ... 36 V DC, the Portable ultrasonic flow meter is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission.

This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.

Features:

• Measurement Range ±0.1 m/s ... ±5 m/s
• Display of Flow, Volume Flow
• Pipe Size: DN4
• Suitable for Various Pipe Materials and Media
• Analog Output: 4 ... 20mA
• Interface: RS485

Includes:

• 1 x Portable Ultrasonic Flow Meter
• 1 x 2m Connection Cable
• 4 x Coupling Pads
• 1 x User Manual
