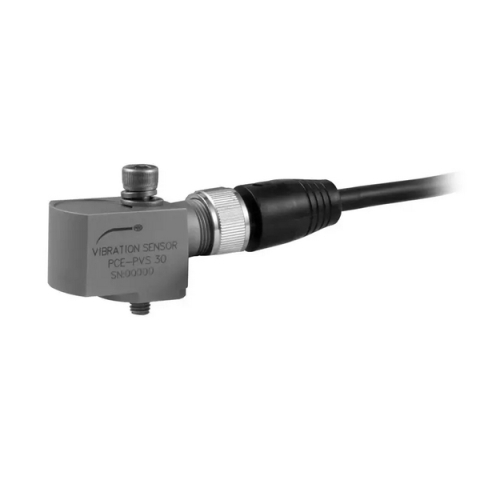

PCE Instruments PCE-PVS 30 Horizontal Connection Vibration Sensor for Monitoring the Vibration Speed 12.7 mm/s Measuring Range

The Vibration Sensor has been developed for the continuous monitoring of the vibration speed. The vibration sensor is available in different versions. Depending on the type of vibration sensor, a distinction is made between design and measuring range. The Vibration Sensor measures the vibration speed in the range of ± 12.7 mm / s or ± 25.4 mm / s in the frequency range between 3 Hz and 1500 kHz.

The measured vibration speed is output as a 4 ... 20 mA process current. The Vibration Sensor is looped through a MIL-C-5015 connector to a controller or process display. Depending on the design, the connection socket is attached to the vibration sensor vertically or horizontally. The Vibration Sensor can be operated with a voltage of 12 ... 24 V DC.

Features:

• horizontal or vertical installation
• Process signal output
• MIL-C-5015 connector
• M6 process connection
• different measuring ranges
• robust construction

Includes:

• 1 x Vibration Sensor PCE-PVS 30
• 1 x MIL-C 5015 plug to 5 m cable
• 1 x instruction manual
