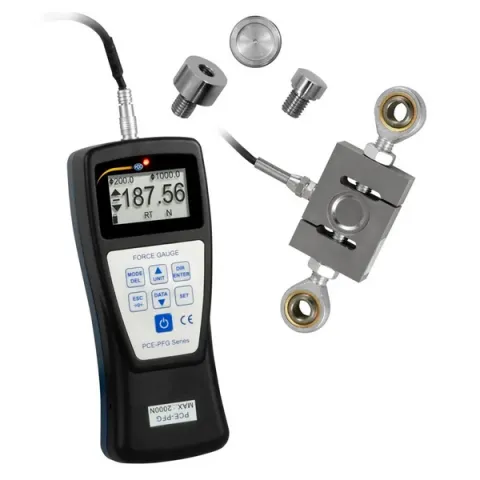

PCE Instruments PCE-PFG 2K PCE-PFG Series Force Gauge with Internal S Load Cell Up to 2000 N Measuring Range

The PCE-PFG force gage is a handy, digital measuring device for measuring tensile and compressive forces. The force gage offers a sampling rate of 500 Hz and various measurement options such as real-time measurement (RT), maximum value measurement (PEAK), configurable average value acquisition (Average) and automatic measurement storage of up to 100 measurements.

The measurement data and a statistical evaluation of the data stored in the force gage (MIN / MAX / average) are shown on the graphic display and can be transferred to a PC via the USB interface. In addition, the force measuring device offers a limit value function MIN / MAX, which can switch a multi-colored LED (yellow / green / red) and switching contacts.The force gage can be operated continuously for up to 36 hours on a single charge (without background lighting) and is a reliable partner as a mobile force measuring device.

Features:

• 4 measurement modes (real-time measurement / maximum value / average measurement / automatic memory measurement)
• Internal memory for up to 100 measured values
• Statistics evaluation (MIN / MAX / average)
• rotatable display
• Alarm function with multi-colored LED (yellow / green / red) and switching contact output 2.85 V.
• USB B interface
• Battery life up to 36 hours

Includes:

• 1 x Force Gage PCE-PFG 2K
• 1 x 2000N S load cell
• 2 x M12 eye bolts
• 2 x force pads
• 1 x USB cable
• 1 x USB charger
• 1 x instruction manual
• 1 x plastic carrying case
