PCE Instruments PCE-PA 8300-2 Three-Phase Power Analyzer with 3 Flexible Rogowski Coils for Current measurement range of 20 A ... 3000 A AC

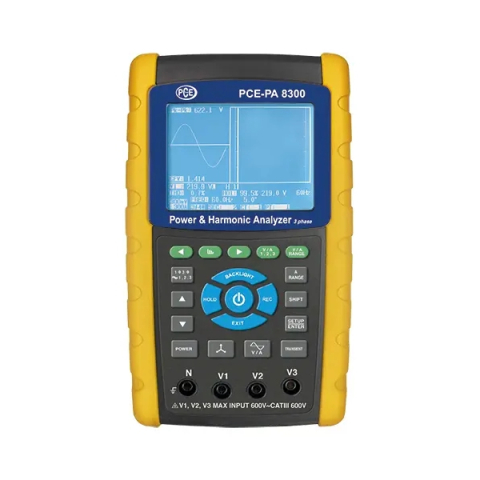

The PCE-PA 8300 is a 3-Phase Power Meter / 3-Phase Power Analyzer that features a durable enclosure, SD card memory, a LCD graphic display, as well as apparent, effective, and reactive power measurement. The easy-to-use PCE-PA 8300 3-Phase Power Meter is the ideal tool for performing power and harmonics analysis as well as for measuring network capacity.

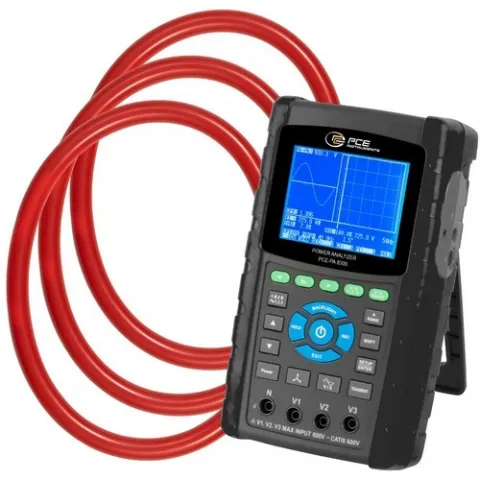

Set 2: Includes 3 flexible Rogowski coils for measurements up to 3000 A AC

Features:

• Voltage measurement range of 10 V ... 600 V AC
• Current measurement range of 30 A ... 3000 A AC (Set 2)
• Performance measurement range of 0 kW ... 9.999 MW (VA/VAR)
• Simultaneous display of harmonics and waveform
• Graphic Phasor diagram
• Captures transients including dip, swell, and outage
• SD card memory
• LCD graphic display
• Durable enclosure
• Compatibility with various manufacturers' power clamps
• Adjustable back-up interval, allowing for long-term data collection
• Auto-setting of measurement range (AC V)
• Power efficiency, delay angle, and frequency measurement
• Apparent, effective, and reactive power measurement
• Harmonic spectrum measurement up to the 50th order

Includes:

• 1 x PCE-PA 8300 3-Phase Power Meter / 3-Phase Power Analyzer
• 3 x Flexible Rogowski coils (Set 2)
• 4 x Insulated alligator clips
• 4 x Safety test lines
• 6 x 1.5 V AA batteries
• 1 x 9 V mains adapter
• 1 x SD memory card
• 1 x Carrying case
• 1 x User manual

For more information, please see Data Sheet
