PCE Instruments PCE-PA 8000 Three-Phase Power Analyzer for Measuring Range Up to 600 V AC

The 3-Phase-Power Meter / 3-Phase Power Analyzer is able to measure and record the power in both single-phase or three-phase circuits. With the PCE-PA 8000 3-Phase-Power Meter you will be able to perform prolonged measurements. Measurement values are saved in xls format on the included SD card of 3-Phase-Power Meter to be easily analyzed on the computer. Measurement sample rate can be set from 2 to 7200 seconds. The PCE-PA 8000 3-Phase-Power Meter can also measure power and determine both power factor and phase angle. The clamps of the PCE-PA 8000 3-Phase-Power Meter can be used for cables with a diameter of 50 mm / 2.0 in. The PCE-PA 8000 is the ideal tool to be used in power supply networks. Its 3.7 in / 94 mm display allows you to read all measured values for a quick analysis as well as providing a view of the current, voltage, and power.

Features:

• Analysis of a network of 3 phases / 4 conductors, 3 phases / 3 conductors, 1 phase / 2 conductors, 1 phase / 3 conductors
• Measures effective real value of current and voltage
• Measures active, apparent, and reactive power
• Power Factor, phase angle
• Measures voltage up to 600 V
• Measures current up to 1200 A
• It meets the IEC 1010 and CAT III 600 V standards
• Integrated timer and calendar to record data
• Measured values are recorded in the included SD card
• Data is stored in Excel format for further study
• Data can be transferred to a PC through data cable
• Large 3.7 in / 94 mm LCD display

Includes:

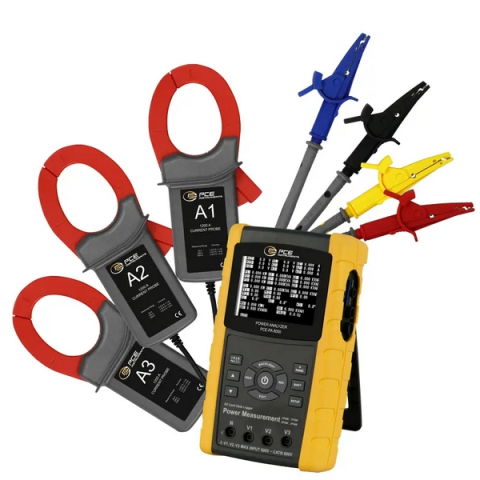

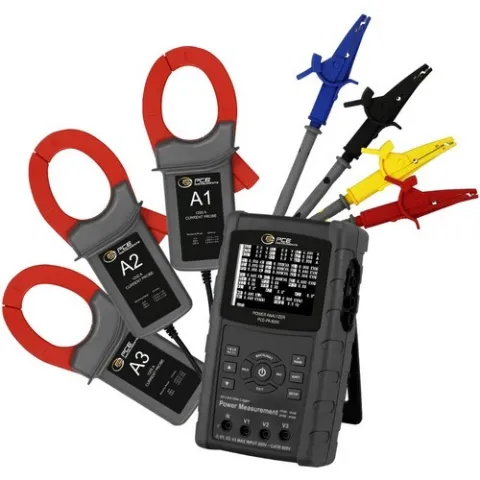

• 1 x 3-Phase-Power Meter / 3-Phase Power Analyzer PCE-PA 8000
• 3 x Current clamps
• 4 x Test cables
• 4 x Alligator clips
• 1 x 2 GB SD card
• 1 x 9 V DC mains component
• 8 x Batteries 1.5 V AA
• 1 x Carrying case

For more information, please see Data Sheet
