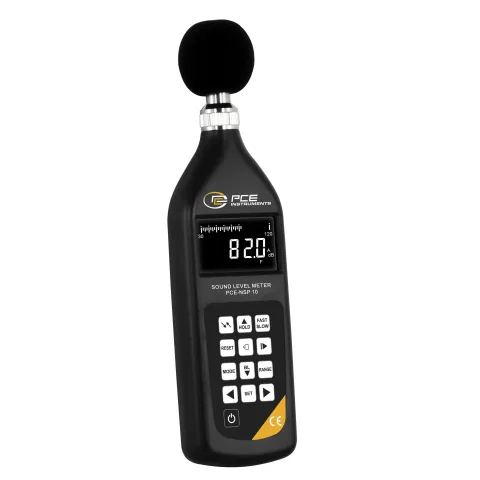

PCE Instruments PCE-NSP 10 Decibel Meter Measurement range 20-130 dB

Decibel Meter / measurement range: 20 ... 130 dB / measurement functions: HOLD, MAX and LEQ / time weighting: F, S and I / frequency weighting: A, C and Z / battery and mains operation

Thanks to its wide measurement range and versatile functions, Decibel Meter is suitable for noise measurements in industry, the environment, occupational health and safety, at events and in research. The Decibel Meter records and visualises sound levels within a range from 20 to 130 dB in three manual measurement ranges and offers various measurement functions such as Hold, Max and Leq value. The Decibel Meter supports time weighting F, S and I as well as frequency weighting A, C and Z and can record sound within a frequency range from 25 to 130 dB.

With operation modes for Leq, 1/1 and 1/3 octave filter measurements, it covers a wide range of measurement requirements. The internal memory function enables automatic storage of up to 12 data groups for octave band measurements. In addition, up to 800 individual measurements and regular measurements can be saved over a period of up to 6 days. These functions make Decibel Meter s indispensable tools in acoustics to ensure both the protection of people and the quality of rooms and products. An RS232 interface can transfer the data via the optional software. An AC output is also available.

The Decibel Meter fulfils several standards, including IEC 61672-1, GB/T3785.2-2010 and IEC 1260-2014, all in class II, making it the ideal choice for standard-compliant measurements. The Decibel Meter is supplied with a windscreen in a practical carrying case.

Features:

• measurement functions: HOLD, MAX, LEQ
• time weighting: F, S and I
• octave band measurement
• frequency range: 20 ... 8000 Hz
• frequency weighting: A, C and Z
• battery and mains operation

Includes:

• 1 x Decibel Meter PCE-NSP 10
• 4 x 1.5 V AAA batteries
• 1 x carrying case
