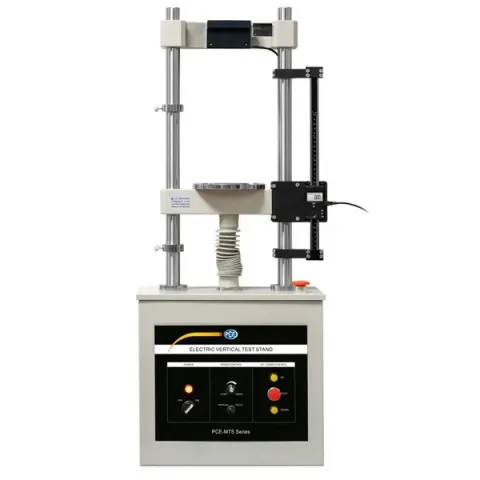

PCE Instruments PCE-MTS500-FD 300 KIT Motorized test stand up to 5000 N / Force-Displacement Adapter for Measurements

Motorized force gage test stand up to 5000 N
The maximum force range of the motorized force gage test stand is 500 kg. The use of the motorized test bench requires a power connection. The feed speed is variably adjustable between 30 mm/min and 230 mm/min. The precise measurement procedure is thus guaranteed with the motorized test stand. The force test stand is compatible with the following device series: PCE-FB series, PCE-FM series, PCE-LFG series and the PCE-PTR 200.

Attention: A force measuring device must always be ordered as an option for the motorized test stand!

PCE-DFG FD 300 force-displacement adapter

The PCE-DFG FD 300 is a useful extension to the material test stand PCE-MTS 500 in connection with a force measuring device (e.g. PCE-DFG N 5K). This extension allows force-displacement diagrams and curves to be created. The software included in the scope of delivery offers the user an optimized interface for evaluating diagrams and graphs. In this way, material tests can be carried out with forces of up to 5000 N (500 kg / 1102 lb).

Features:

• Adjustable feed speed
• Robust steel design
• Adjustable travel
• Large force measuring range
• Mains connection
• All PCE force devices adaptable
• Manual or automatic operation
• incl. length measuring device

Includes:

• 1 x Motorized force gage test stand PCE-MTS500
• 1 x Instruction manual
• 1 x Length measuring device PCE-DFG FD 300
• 1 x Bracket (consisting of 11 components)
• 1 x Mounting kit (consisting of 24 screws and 2 grub screws)
• 1 x Measuring system
• 1 x Data cable
• 1 x USB stick with PCE-DFG FD software
