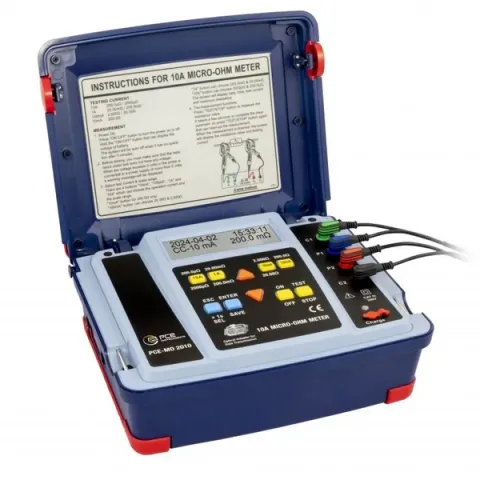

PCE Instruments PCE-MO 2010 Electrical Tester in Robust Housing with 4-wire Measuring Method and 7 Selectable Measuring Ranges

The electrical tester with seven selectable measuring ranges from 0 µΩ to 200 Ω, a maximum resolution of 0.1 µΩ and a maximum test current of 10 A offers a wide range of applications. Thanks to the 4-wire measuring method, the electrical tester guarantees accurate measurements at the smallest resistances without the influence of the lead resistance. It can therefore be used for a wide range of applications, e.g. to detect poor contact between two measuring points, measurements on switches, continuity of earth connections or for testing metal coatings.

The illuminated LC display of the electrical tester makes it easy to read the measurement results, even in unfavourable lighting conditions. With an internal memory for up to 200 measured values and a low battery indicator, the device offers additional user-friendliness and makes the electrical tester an indispensable tool for preventive maintenance. The data can be transferred to the software via the optical RS232 interface and a text document with the measurement data can also be exported. The practical case and a bag for the test leads make it easy to transport the measuring device.

Features:

• 7 selectable measuring ranges
• 4-wire measuring method
• LC display 5.1 inch with illumination
• Internal memory
• Automatic switch-off
• Date and time display

Includes:

• 1 x electrical tester PCE-MO 2010
• 2 x 2.5 m test leads with Kelvin clamps
• 1 x data transmission cable
• 1 x PC software on USB stick
• 1 x power supply 24 VDC / 0.625 A
• 1 x shoulder strap
• 1 x bag for test leads
• 1 x operating instructions
