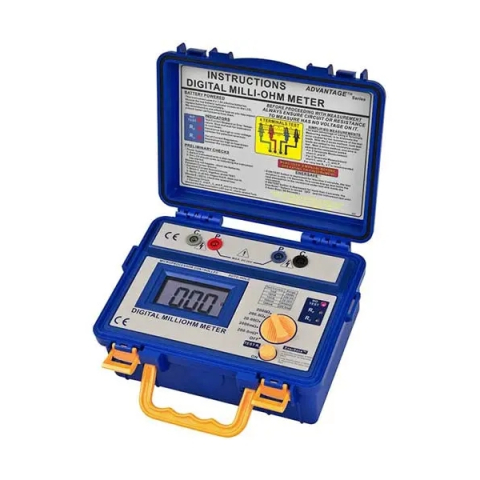

PCE Instruments PCE-MO 2002 Electrical Tester for Measure Electric Resistance Up to 2000 Ohm

This Electrical Tester comes with a housing protected against water splash. With the Electrical Tester PCE-MO 2002 Series you can measure from 100 μΩ up to 2000 Ω. With this Electrical Tester measurement values are displayed by means of a LCD display with 3,5 digits and a good readability. Electrical Tester detect the measurement value, a constant current is mated on the object is going to be measured and then the voltage drop is tested.

Features:

• It allows to measure resistance in coils, generators, transformers, parallel and secondary circuits, commutators and  relay.
• It measures binding energy in mines, planes, rail systems, boats and electrical installations in both industry and home.
• It allows continuity tests in circularly systems (ring network) in industry and home
• To test compression elements in airlines, testing works and maintenance of electric cupboards and elements such as fuses, connectors, contacts, etc...
• Measurement system with four conductors
• Selection of 5 measurement ranges
• 3 test currents with overheat fuse
• Surge fuse in measurement inputs.
• Big LCD display
• Elimination of the measurement resistance in conducts.
• Auto-Hold and Auto-Off function
• LED indication when the Rp, Rc and temperature permitted values are exceeded.
• Light weight, solid and compact
• Waterproof housing with ring seal
• Security: IEC-1010-1; CAT IV 20 V

Includes:

• 1x Electrical Tester PCE-MO 2002,
• 1 testing cable set,
• 1 supporting strap,
• 8 batteries and
• user's manual.
