PCE Instruments PCE-MFM 2400+ Electromagnetic Field Meter with Hall Axial Sensor

The magnetic field analyzer is a compact precision instrument. It was specially developed to measure magnetism and is suitable for Tesla and Gauss measurements. The magnetic field analyzer is used wherever it goes about the field strength measurement on permanent magnets. Here, it convinces by the highest reliability and precision and at the same time, by the simplicity of the application.

Electromagnetic Field Meter / Field Analyser Application in the industry.With a measuring range of 0 to 200 mT or 200 to 2.400 mT, the magnetic field analyzer covers a wide range of measuring tasks. The magnetic field analyzer has a practical switching function and can automatically switch between the two measuring ranges. If the current value is in the range 0 to 200 mT, the magnetic field analyzer switches to the 200 mT measuring range. If the 200 mT mark is exceeded, the device automatically switches to the 2000 mT range. The display clearly informs the user about the current range.
The magnetic field analyzer allows very precise magnetic field measurements with an accuracy of 1%. Thus, with the help of the magnetic field analyzer, for example, relays and permanent magnets can be tested for the existing magnetic field. The magnetic field analyzer clearly shows the measurement results on its large display. Due to the backlight, the measured values are easy to read even in the poor lighting conditions.

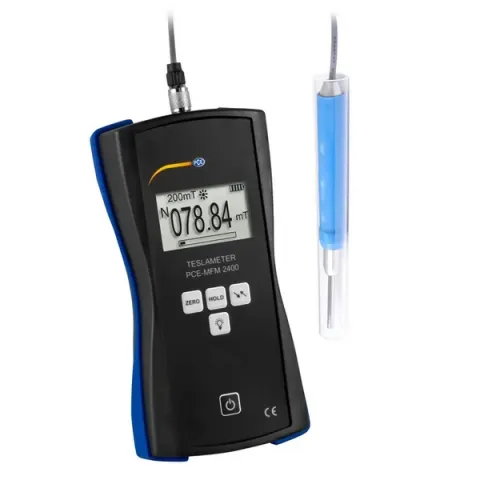

The magnetic field analyzer consists of a compact display device and a sensor. The sensor uses the Hall-effect to determine the magnetic fields. The application of the magnetic field analyzer is simple and effective. Before each measurement, the sensor should be adjusted to the ambient temperature. To record the measured values, the cover must be removed and the sensor head should be placed in the middle of the magnetic field to be measured. In order to be able to read the respective maximum value correctly, the magnetic field analyzer has a hold function. At the push of a button, the magnetic field analyzer shows the measured maximum value in the negative and positive range.

In addition, the manufacturer has equipped the magnetic field analyzer with another practical function: if necessary, the measuring device can indicate the direction of incidence of the magnetic field lines.

In order to protect the battery of the magnetic field analyzer, the measuring instrument has an automatic switch-off. If there is no input for five minutes, the magnetic field analyzer switches off automatically and prevents the battery from being completely discharged.

Features:

• Very precise measurement technology
• Measuring range up to 24,000 G and 2,400 mT
• Axial sensor
• For measuring static magnetic fields
• Automatic shutdown

Includes:

• 1 x Electromagnetic Field Meter PCE-MFM 2400+
• 1 x Hall sensor (axial)
• 1 x Service bag
• 1 x 9V block battery
• 1 x Instruction manual
