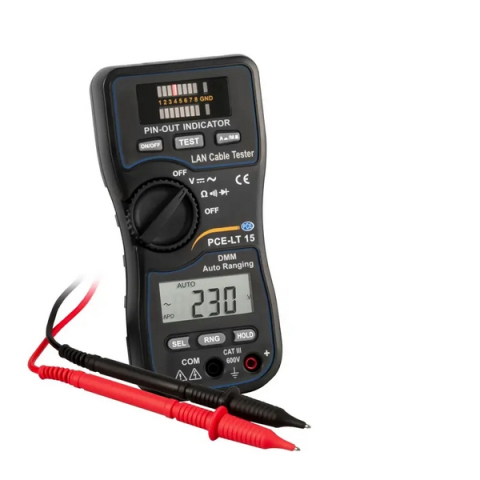

PCE Instruments PCE-LT 15 Digital Multimeter with Many Measuring Functions

The LAN tester PCE-LT 15 is a combination device which detects configuration errors in the network and at the same time can be used as a multimeter. Thus, the periphery of a network can be quickly checked with the LAN tester. With the LAN tester PCE-LT 15 it is possible to check 8-pin data cables with RJ-45 connectors for continuity, open connections, and short circuits. In addition to the LAN test function, the LAN Tester can also measure DC and AC voltages.

With the LAN tester, which also serves as a multimeter, it is possible to perform a continuity test with buzzer and a diode test. The LAN tester is also a device that identifies the most common network installation errors. The two-row LEDs successively indicate the pin assignment of the cable to be tested. In the event of a short circuit, more than two LEDs light up simultaneously.

Features:

• Combination device of LAN tester and multimeter
• LCD
• Checks Lankabel and patch fields
• Continuity test and diode test possible
• Overload indicator
• Short circuit display

Includes:

• 1 x Multimeter PCE-LT 15
• 1 x Remote unit
• 1 x RJ45 connection cable
• 1 x Test lead set
• 2 x 1.5V AAA batteries
• 1 x 9V block battery
• 1 x User manual

For more information, please see Data Sheet
