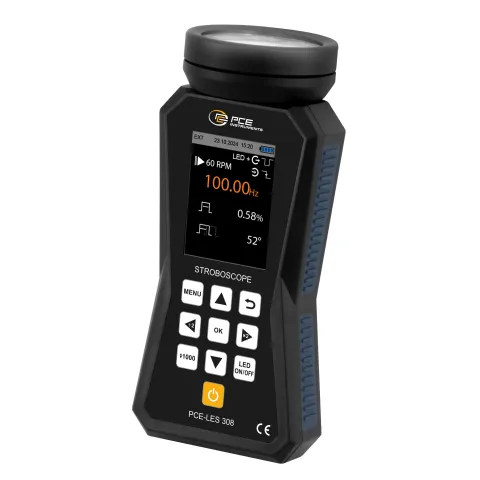

PCE Instruments PCE-LES 308 Tachometer with 8 High-power LEDs 9150 lux 1000Hz

Tachometer with 8 high-power LEDs / 9150 lux at 30cm at 1000Hz 1% / pulse width adjustable in per cent, degrees or time / phase shift / LC color display / mains-independent thanks to rechargeable battery operation

Analysing the movement of rotating machines is quick and easy with Tachometer. The Tachometer is equipped with 8 high-power LEDs, which together generate a light intensity of 17670 lux at 20 cm / 1000 Hz.
The Tachometer allows you to precisely set the flash frequency in both FPM and Hz. The Tachometer is pocket-sized and is also mains-independent thanks to the rechargeable battery.

The Tachometer is operated intuitively using the 10 keys, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The Tachometer is supplied with a USB-C charging cable in a service bag.

When input trigger mode is activated, the device synchronises the flash frequency of the LEDs using the input trigger signal provided (or the output trigger signal). A rising or falling edge of the signal to be synchronised can be selected. In output trigger mode, the device generates a PWM signal with the selected frequency, the selected duty cycle and the selected phase shift.

Route measurement mode makes it possible to use a number of predefined settings for frequency, duty cycle and phase shift and to navigate from one point to the next without having to manually set the values at each point. The device allows the storage of up to 15 routes with a maximum of 10 machines per route and a maximum of 5 points per machine.

Features:

• 8 powerful high-power LEDs
• flash frequency adjustable in FPM and Hz
• 9150 lux at 30 cm / 1000 Hz
• digital pulse width modulation
• phase shift - 360 ° ... + 360 °
• quick adjustment using x2 and ÷2 key
• intuitive control keys and clear display
• pocket size
• external trigger input and output
• route measurement
• slow motion mode

Includes:

• 1 x Tachometer PCE-LES 308
• 1 x USB-C cable
• 1 x quick start guide
• 1 x service bag
