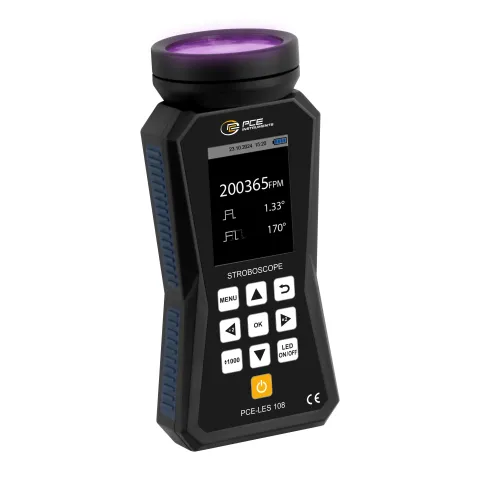

PCE Instruments PCE-LES 108UV-365 Tachometer with 8 UVA High-power LEDs 1731 uW/cm2 at 30 cm

Tachometer with 8 UVA high-power LEDs / 1731 μW/cm² at 30 cm / pulse width adjustable in per cent, degrees or time / phase shift / LC color display / mains-independent thanks to rechargeable battery operation

Analysing the movement of rotating machines is quick and easy with stroboscope. The Tachometer is equipped with 8 UVA high-power LEDs, which together generate a light intensity of 1731 μW/cm² at a distance of 30 cm. The stroboscope allows you to set the flash frequency in both FPM and Hz. The stroboscope is pocket-sized and also mains-independent thanks to the rechargeable battery.

The stroboscope is operated intuitively using the 10 keys, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The stroboscope is supplied with a USB-C charging cable in a service bag.

Tachometers are indispensable tools for monitoring and inspecting production facilities, e. g. in the printing and textile industries but also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the Tachometer matches the frequency of movement, the measured object appears stationary.

Fetures:

• 8 UVA high-power LEDs
• light color: 365 ... 370 nm
• flash frequency adjustable in FPM and Hz
• intensity: 1731 μW/cm² at 30 cm
• digital pulse width modulation
• phase shift: - 360 ° ... + 360 °
• quick adjustment via x2 and ÷2 key
• intuitive control keys and clear display
• pocket size

Includes:

• 1 x Tachometer PCE-LES 108UV-365
• 1 x USB-C cable
• 1 x quick start guide
• 1 x service bag
