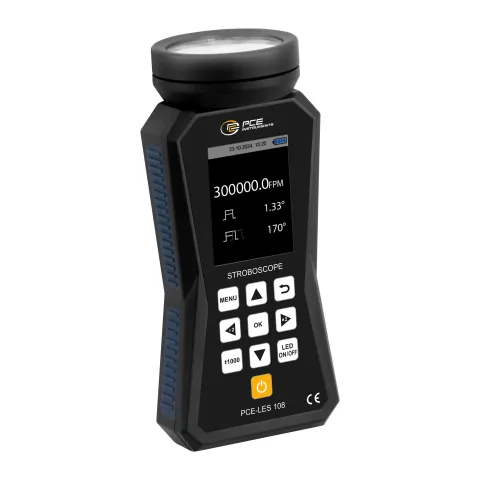

PCE Instruments PCE-LES 108 Tachometer with 8 High-power LEDs

Tachometer with 8 high-power LEDs / 9150 lux at 30cm at 1000Hz 1% / pulse width adjustable in per cent, degrees or time / phase shift / LC color display / mains-independent thanks to rechargeable battery operation

Analysing the movement of rotating machines is quick and easy with Tachometer. The Tachometer is equipped with 8 high-power LEDs, which together generate a light intensity of 9150 lux at 30 cm / 1000 Hz.
The Tachometer allows you to precisely set the flash frequency in both FPM and Hz. The Tachometer is pocket-sized and is also mains-independent thanks to the rechargeable battery.

The Tachometer is operated intuitively using the 10 keys, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The Tachometer is supplied with a USB-C charging cable in a service bag.

Tachometers are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries but also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the Tachometer matches the frequency of movement, the measured object appears stationary.

Features:

• 8 powerful high-power LEDs
• flash frequency adjustable in FPM and Hz
• 9150 lux at 30 cm / 1000 Hz
• digital pulse width modulation
• phase shift - 360 ° ... + 360 °
• quick adjustment using x2 and ÷2 key
• intuitive control keys and clear display
• pocket size

Includes:

• 1 x Tachometer PCE-LES 108
• 1 x USB-C cable
• 1 x quick start guide
• 1 x service bag
