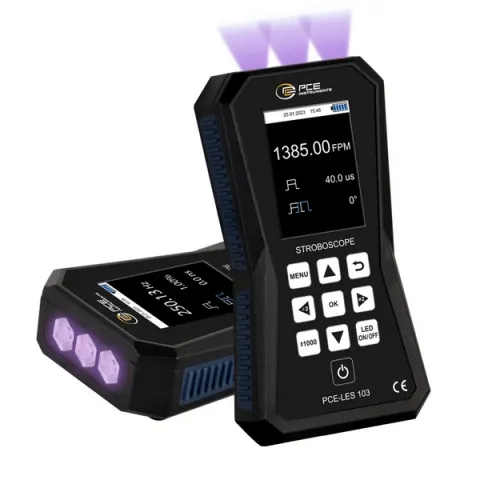

PCE Instruments PCE-LES 103UV-385 Automotive Tester / Stroboscope with 3 UVA high-power LEDs UV light 380 - 390 nm

Motion analysis of rotating machines is quick and easy with this automotive tester / stroboscope. The automotive tester / stroboscope is equipped with 3 high-power UVA LEDs (385 nm), which together generate a light intensity of 317 μW/cm² at a distance of 30 cm. The automotive tester / stroboscope allows the flash frequency to be set in FPM and Hz. At the same time, it is small, handy and independent of the power supply thanks to its rechargeable battery.

The automotive tester / stroboscope is operated intuitively using 10 buttons, allowing quick settings to be made. The observation point can be variably shifted using the phase shift. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. In the settings menu, you can select the display brightness and switch off the display after a period of inactivity, which extends the battery life. The automotive tester / stroboscope is supplied with a USB-C charging cable in a service bag.

Automotive Tester / Stroboscopes are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the automotive tester / stroboscope matches the movement frequency, the measured object appears stationary.

Features:

• 3 UVA high-power LEDs
• Wavelength: 380 ... 390 nm
• Flash frequency adjustable in FPM and Hz
• Intensity: 317 μW/cm² at 30 cm
• Digital pulse width modulation
• Phase shift: - 360 ° ... + 360 °
• Quick adjustment using x2 and ÷2 buttons
• Intuitive control buttons and clear display

Includes:

• 1 x automotive tester / stroboscope PCE-LES 103UV-385
• 1 x USB-C cable
• 1 x Quick Start Guide
• 1 x Service bag
