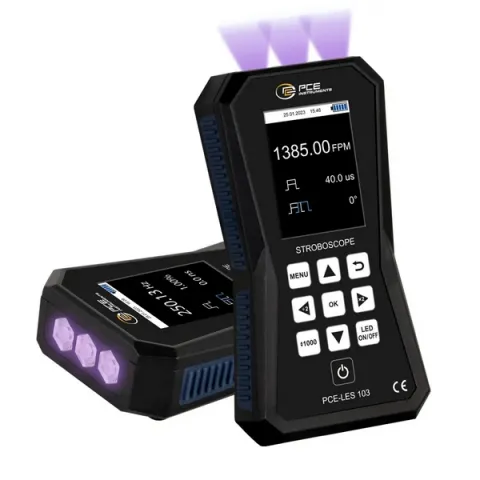

PCE Instruments PCE-LES 103UV-365 Automotive Tester / Stroboscope with 3 UVA High-Power LEDs UV light 365 - 370 nm

Motion analysis of rotating machines is quick and easy with this Automotive Tester / Stroboscope. The Automotive Tester / Stroboscope is equipped with 3 UVA high-power LEDs, which together generate a light intensity of 202 μW/cm² at a distance of 30 cm. With the Automotive Tester / Stroboscope, you can set the flash frequency in both FPM and Hz. It is also small, handy and mains-independent thanks to the rechargeable battery.

The Automotive Tester / Stroboscope is operated intuitively using the 10 buttons, allowing quick adjustments to be made. The phase shift allows the observation point to be moved variably. The pulse width can be used to set the duration and therefore also the intensity of the flash frequency. The display brightness can be selected in the settings menu and the display can also be switched off after a period of inactivity, which extends the battery life. The Automotive Tester / Stroboscope is supplied with a USB-C charging cable in a service bag.

Automotive Tester / Stroboscopes are indispensable tools for monitoring and inspecting production facilities, e.g. in the printing and textile industries. But also for general maintenance and inspection tasks in all industrial sectors. They also enable non-contact speed and vibration measurement: if the flash frequency of the Automotive Tester / Stroboscope matches the movement frequency, the measured object appears stationary.

Features:

• 3 UVA high-performance LEDs
• Flash color: 365 ... 370 nm
• Flash frequency adjustable in FPM and Hz
• Intensity: 202 μW/cm² at 30 cm
• Digital pulse width modulation
• Phase shift: - 360 ° ... + 360 °
• Quick adjustment using x2 and ÷2 buttons
• Intuitive control buttons and clear display

Includes:

• 1 x PCE-LES 103UV-365 automotive tester / stroboscope
• 1 x USB-C cable
• 1 x Quick Start Guide
• 1 x Service bag
