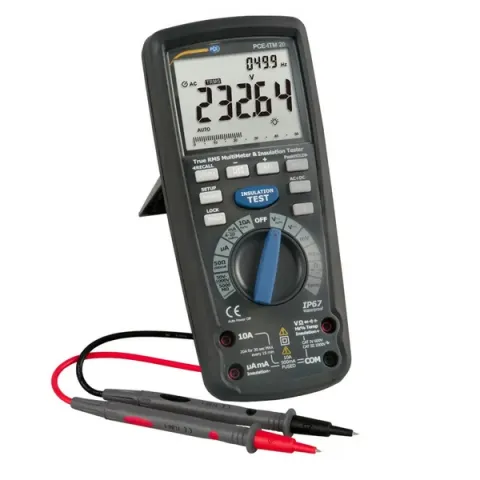

PCE Instruments PCE-ITM 20 Insulation Tester for Insulation Resistance Up to 5000 MOhm

This insulation tester PCE-ITM 20 combines a versatile multimeter with an insulation tester. In addition to the usual measured quantities such as voltage, current and resistance, this insulation tester PCE-ITM 20 is also equipped with a frequency and capacitance measurement. A thermocouple included in the delivery can also be used to measure the temperature. Automatic range selection (Autorange) allows fast and safe operation with the insulation tester, while the large backlit LCD display ensures good readability.

The highlight of this isolation multimeter is the integrated insulation tester. With test voltages of up to 1000 V, insulation resistances of up to 5000 MΩ (5 GΩ) are measured. Likewise, the insulation tester can directly measure the PI and DAR value. Thus, it is quickly possible to make a statement about the insulation value of the DUT with the help of the insulation tester.

In addition, this insulation tester has an internal memory. This gives you the opportunity to recall the stored measured values for subsequent analysis in the display and to transfer the measured values via the wireless USB interface from the insulation tester to a PC.

Features:

• Automatic range selection
• Capacitance measurement
• Integrated isolation tester
• Large LCD display, backlight
• Internal memory
• Hold Function
• To IEC 1010, CAT III 1000V, CAT IV 600V
• Frequency measurement

Includes:

• 1 x Insulation Tester PCE-ITM 20
• 1 x Pair of test leads
• 1 x Crocodile clip with wire
• 1 x Adapter for thermoelement
• 1 x Thermoelement Type K
• 6 x 1.5V AA batteries
• 1 x Wireless USB Adapter
• 1 x User manual
