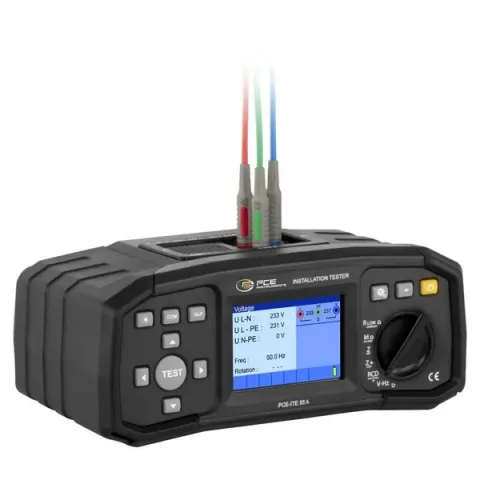

PCE Instruments PCE-ITE 55A Electrical Tester with 3.3" TFT Color Display for Measuring Range Up to 550 V AC/DC RCD Type A and AC

The electrical tester is a multifunctional measuring device designed for testing electrical safety in accordance with the standards EN 61557 and DIN VDE 0100. It offers many functions specifically designed for the inspection and assessment of electrical installations. The electrical tester can perform precise measurements of insulation resistance between live parts and ground. With special functions for RCDs, both Type A and AC-controlled residual current circuit breakers can be efficiently tested, ensuring the proper functioning of these vital protective devices.

The electrical tester allows for the quick and accurate measurement of loop resistance to ensure that, in the event of a fault current, sufficient resistance is present to ensure a safe disconnection. Additionally, a measurement of the protective conductor resistance allows for checking the continuity of conductors and connections. A graphical representation of the wiring helps the operator perform measurements accurately.

The brightness of the display can be adjusted in 4 levels. An adjustable alarm tone warns of errors or exceeding the limit. The adjustable auto-off time of the electrical tester prevents unintentional battery discharge. The device comes with test leads that meet the specific requirements of CAT III / 600 V and CAT IV / 300V.

The electrical tester offers a user-friendly interface, clear display elements, and a robust construction to meet the requirements in various environments. By complying with international standards, it ensures a safe and reliable assessment of electrical installations according to the highest industry standards.

Features:

• Testing according to EN 61557 and DIN VDE0100
• Insulation resistance
• RCD Type A and AC
• Line and fault loop impedance
• Continuity test
• Voltage, phase sequence, and frequency
• Testing of EV charging stations with optional test adapter
• Includes test leads

Includes:

• 1 x Electrical Tester PCE-ITE 55A
• 1 x Test Cable for EU Schuko Sockets
• 3 x Test Leads 1m
• 3 x Test Probes
• 3 x Crocodile Clips
• 1 x Carrying Strap
• 6 x 1.5V AA Batteries
• 1 x Factory Calibration Certificate
• 1 x User Manual
