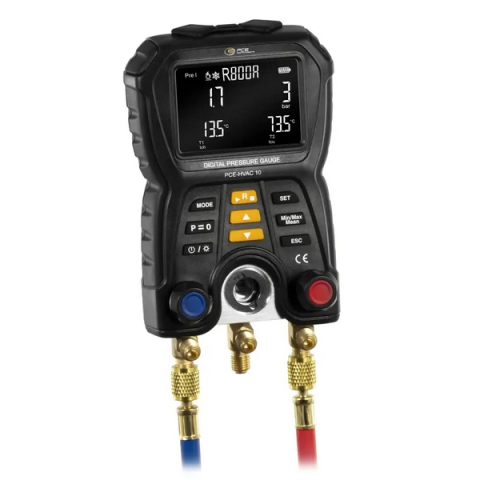

PCE Instruments PCE-HVAC 10 Pressure Gauge in a Robust Metal Casing Up to 60 Bar Measuring Range

The pressure gauge is a robust measuring instrument designed for daily use in refrigeration systems and heat pumps to determine pressure and temperature. Measurement with the pressure gauge is carried out using supplied refrigerant hoses and 2 NTC clamp-on temperature sensors. All measurement parameters can be simultaneously captured by simply attaching or screwing them on. The metal 2-way valve block with 3 connectors and 3 hose holders allows for quick and easy operation of the pressure gauge. The 83 preloaded refrigerants can be quickly selected and are visible on the measurement screen. During measurements, the hanging fixture ensures secure attachment. The pressure gauge is powered by 4 x 1.5V AA batteries.

The pressure gauge is ideal for commissioning, servicing, and maintenance tasks. Thanks to additional device features such as the automatic heat pump mode, which eliminates the need to swap refrigerant hoses for measurements, and the temperature-compensated density testing function, working on refrigeration systems and heat pumps becomes very straightforward.

Features:

• Measurement Range: -1 ... +60 bar
• Resolution: 0.01 bar
• Accuracy: ±0.5% FS (Full Scale).
• 83 refrigerants stored in the device
• 2-way valve block with 3 connectors 7/16" - UNF
• Includes 2 NTC clamp-on temperature sensors
• Temperature measurement from -10 ... +200 °C

Includes:

• 1 x Pressure Gauge PCE-HVAC 10
• 3 x Refrigerant Hoses (Red, Blue, Yellow)
• 2 x Clamp-On NTC Temperature Sensors
• 4 x 1.5V AA Batteries
• 1 x Carrying Case
• 1 x User Manual
