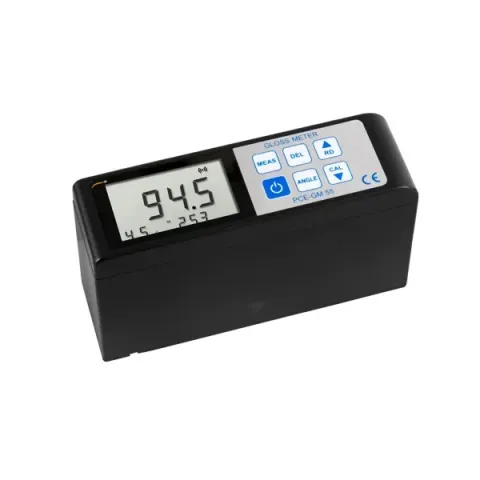

PCE Instruments PCE-GM 55 Gloss Meter with Three Measuring Angles 20 deg., 45 deg. and 75 deg.

The gloss meter PCE-GM 55 is a 3-angle gloss meter. The measuring angles of the gloss meter are 20°, 45° and 75°. This allows the gloss meter to be used for gloss measurements in the high gloss and medium gloss ranges. The special measuring angle of 75° allows, among other things, measurements of the degree of gloss on paper and textiles. The gloss meter is based on the ASTM, DIN and EN ISO standards. The measuring range of the gloss meter ranges from 0 ... 200 gloss units.

The measurement of the gloss level with the gloss meter is made by the reflection of light from the surface to be measured. The gloss level is continuously measured and simultaneously displayed on the LC display of the gloss meter. Via the integrated interface, the measured values can be transferred from the gloss meter to a PC. To power a Li-Ion battery is used. This can be charged via a 5V power supply.

Features:

• 20°, 45° and 75° measurement angle
• Measuring range up to 200 gloss units
• LC display
• Serial interface
• For medium and high gloss
• Measurement on textiles and paper possible

Includes:

• 1 x Glossmeter PCE-GM 55
• 1 x Reference standard
• 1 x Cleaning cloth
• 1 x Carrying case
• 1 x User manual
