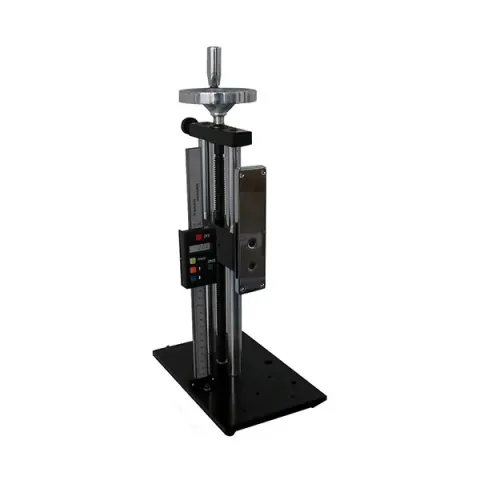

PCE Instruments PCE-FTS50 Force Test Stand

The PCE-FTS50 Force Test Stand that works with the PCE-FM 50, PCE-FM 200, PCE-DFG N 200, PCE-DFG N 500 and PCE-PTR 200. This Force Test Stand offers control and stability when measuring traction and compression with a force gauge or force meter. In addition, using the Force Test Stand guarantees a precise correspondence between the test matrix and the test position. This allows for results to be accurately reproduced.

Note: The mounting plate ADP-UNI must be ordered at the same time!

Features:

• with digital measuring distance display
• maximum operating length of 236.36 mm / 9.30"
• total length of 500 mm / 19.68" (without handwheel)
• handwheel diameter of 100 mm / 3.93"
• base plate on stand 234 x 152 mm / 9.21 x 5.98"
• weight of approx. 9.15 kg / 20 lb 2.7 oz
• max. force range 500 N
• delivered without force gauge

The following devices can be adapted to this test stand (with corresponding plate ADP-UNI):

• PCE-FM50/ 200
• PCE-PTR 200
• PCE-DFG N 200 or 500

Includes:

• 1 x PCE-FTS50 Force Test Stand
