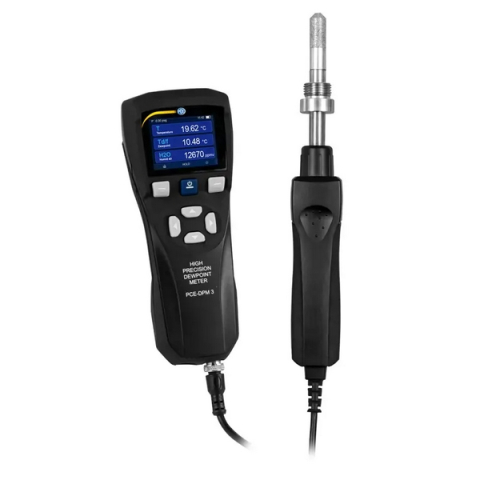

PCE Instruments PCE-DPM 3 Dewpoint Meter Up to 20000 ppm Measuring Range

The air humidity meter is a mobile testing device for monitoring the quality of compressed air on stationary and mobile compressed air generators. This air humidity meter measures the temperature, the relative humidity, H2O and calculates the current dew point up to an ambient pressure of 20 bar. Thanks to the sintered cap, the air humidity meter in the pressure lines is protected from dirt, moisture and high flow speeds. This increases the service life of the climate meter's sensors.

The data memory of the air humidity meter enables the course of the measurement parameters to be recorded in a pressure line. The data recorded by the climate meter is permanently stored in the internal memory. The memory can be read out directly on the air humidity meter. The air humidity meter can also be connected to an operating system independent computer via the micro USB interface. This is made possible because the air humidity meter is recognized as a mass data storage device. The data saved by the pressure air humidity meter are saved in CSV format. The stored measurement data can thus be evaluated using any spreadsheet program.

Features:

• Data storage with CSV data export
• Dew point, H2O, temperature, humidity measurement
• For inline measurement of pressure pipes
• Battery operation for mobile use
• With G1 / 2 "connection thread
• Sensors protected with sintered filters

Includes:

• 1 x Air Humidity Meter PCE-DPM 3
• 1 x USB power supply
• 1 x Micro USB cable
• 1 x Transport case
• 1 x Instruction manual
