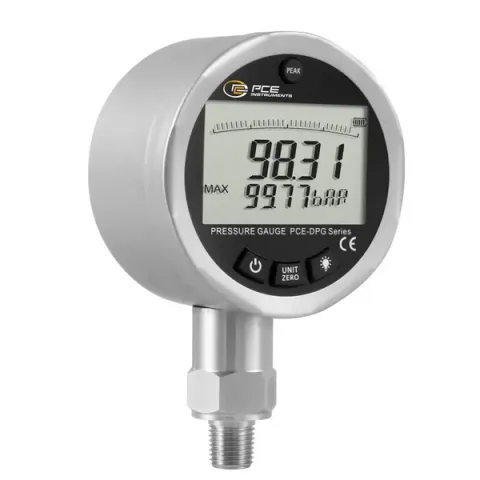

PCE Instruments PCE-DPG 100 PCE-DPG Series Digital Pressure Meter for Water and Gases Up to 100 Bar Measuring Range

The pressure meter of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this pressure meter is versatile. The current pressure is displayed by the pressure meter as a value and at the same time as a bar graph. As an additional function, the pressure meter offers a peak function. This function shows the operator the maximum and minimum pressure measured on the pressure meter at the push of a button.

Thanks to the large display of 2.5" almost all measured value can be read directly. Possible adjustable units for the pressure meter would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the pressure meter is < 50 ms. The connection of the pressure meter to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.

Features:

• Measuring range up to 1450 psi, 100 bar
• Scaled bar graph
• Battery powered 3 x 1.5V AAA
• Large 2.5" display
• Adjustable backlight
• 1.4" NPT connection thread

Includes:

• 1 x Pressure Meter PCE-DPG 100
• 3 x Batteries 1.5V AAA
• 1 x Operating instructions
