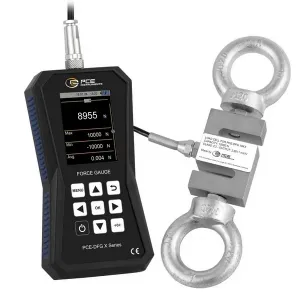

PCE Instruments PCE-DFG 10K X PCE-DFG X Series Force Gauge with Internal Measuring Cell Up to 10 kN

The force gauge can be used to measure both tensile and compressive forces with high accuracy. Tensile and compressive forces are often measured in the test laboratory. For example, to determine the yield point, the tear-off force or the force required to actuate buttons or switches. The force measuring device is supplied with an external measuring cell and can measure forces of up to 10,000 N. Various eyelets or hooks with an M12 thread can be attached to the measuring cells. It is also possible to attach your own devices to the measuring cell using these threads.

The internal memory of 32 GB offers space for 30 million measuring points. This allows measurement logs to be created, saved and exported. The force tester has a USB-C interface that can be used to read the measurement data into the PC software. The force gauge is equipped with a graphic LCD that displays the measured values both numerically and graphically. In addition, a bar chart shows the measured value in the selected measuring range. The measuring cell is protected to IP67 and can therefore also be used in harsh industrial environments.
A special feature of the force tester is the possibility to exchange the measuring cell between the models. By entering the sensitivity in mV/V, all measuring cells can be used with just one handheld device.

Features:

• Measuring range: 0 ... 10 kN
• Measuring rate: 1 ... 7,200 Hz
• Accuracy: ±0.05 % F.S.
• Graphic display
• USB-C interface
• PC software
• 32 GB memory for 30 mio. measuring points
• Measuring cells can be easily changed
• Various alarm modes
• Bar chart for displaying the measured value in the measuring range
• Calibration reminder

Includes:

• 1 x PCE-DFG 10K X force gauge
• 1 x PCE-DFG 10K X load cell
• 2 x eyebolt with M10 thread
• 1 x case
• 1 x USB-C cable
• 1 x PC software
• 1 x operating instructions
