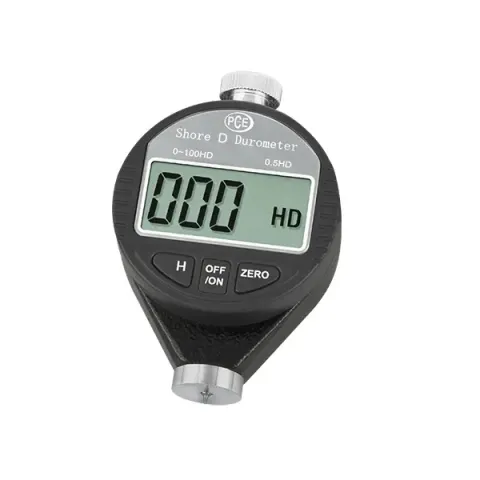

PCE Instruments PCE-DD-D Digital Durometer Shore D with 0-100 Shore Measurement Range 0.5 Hardness Units Reading Accuracy

PCE-DD-D is a Shore D durometer or hardness tester used to measure the Shore hardness of materials such as hard rubber, hard resin, acrylic, glass, thermoplastic and more. This Shore D durometer uses an impact rod with a 30º conical point and 50 Newtons (N) of force to make a surface indentation on material samples with a minimum thickness of 6 mm or 0.24 in. (Note: If a material sample does not meet the minimum thickness required, the sample should be reinforced on the back with more of the same material.)

Features:

• For Shore D hardness testing
• Ideal for use with hard rubber, hard resin, acrylic, glass, thermoplastic, etc.
• Handheld, portable, digital measuring device
• Measurement range: 0 ... 100 Shore D
• Accuracy: ± 2 Hardness - Grade
• Large, easy-to-read display
• Hold functionality

Includes:

• 1 x PCE-DD-D Shore D durometer
• 1 x Plastic carrying case
• 1 x Battery
• 1 x User manual
