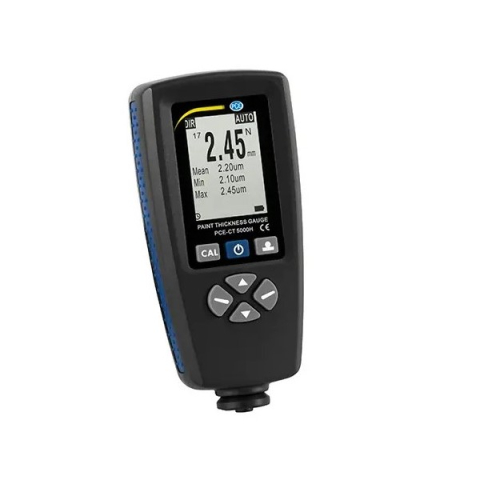

PCE Instruments PCE-CT 5000H Coating Thickness Meter with Zero Calibration Plates (Ferrous and Non-ferrous)

PCE-CT 5000H is a thickness measuring instrument used for the rapid determination of coating thicknesses on ferrous (Type F) and non-ferrous (Type N) metals. The coating Thickness Meter automatically detects the type of metal to be measured. The PCE-CT 5000H coating Thickness Meter uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum.

This Thickness Meter is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications. Alarm limits can be set in the coating Thickness Meter to notify the user when a coating is too thick or too thin. If a coating thickness measurement falls outside the established limits, a message appears on the display to alert the user.

Features:

• Designed for non-destructive testing and inspection
• Measures coating thickness on Fe and nFe metals
• Displays measuring units in μm, mm or mils
• Saves up to 2000 measurements to internal memory
• Practical V-groove on the measuring head
• One- to four-point and zero calibration
• Comfortable one-handed operation
• Programmable alarm limits
• High measuring range
• High measuring accuracy
• Automatic shutdown

Includes:

• 1 x PCE-CT 5000H Thickness Meter
• 2 x Zero calibration plates (ferrous and non-ferrous)
• 5 x Calibration plates
• 2 x 1.5V AAA batteries
• 1 x USB cable
• 1 x PC-compatible software
• 1 x User manual
• 1 x Carrying case
