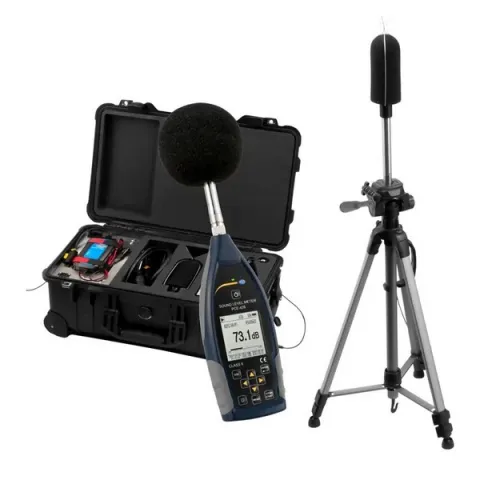

PCE Instruments PCE-428-EKIT Outdoor Sound Level Meter Kit

The outdoor sound level meter PCE-428-EKIT is an optimal sound level meter for measurements at workplaces, construction sites, in traffic, airports, etc. The sound level meter is a class 2 device and is equipped with an octave band frequency filter. Optionally, the sound level meter PCE-428-EKIT can be upgraded with a 1/3 octave band filter. In addition to the numerical display of the measured value, a graph can show the course of the sound level. The sound level meter has different frequency ratings such as A, B, C and Z.

Furthermore, the sound level meter can measure with the time estimates Fast, Slow, Pulse and Peak. The measuring range of the sound level meter ranges from 25 ... 136 dbA at a frequency of 20 Hz ... 12.5 kHz. The sound level meter can store 3 different measuring profiles. Here the user can decide which parameters the sound level meter should record. For example, you can choose between Laeq, LcPeak, LaFmax, LaFMin and so on.

The peak hold function in the sound level meter makes it possible to record the maximum sound pressure level during a long-term measurement and to freeze it in the display. A 24 bit AD converter and the specially developed electronics from the sound level meter help to reduce the inherent noise to a very low level. A sampling of the measurement signal with more than 48 kHz allows a high accuracy and improved stability of the measured value on the sound level meter.

Features:

• 1/1 octave band included
• 1/3 octave band optional
• Accuracy class 2
• A, B, C & Z frequency rating
• Fast, Slow, Pulse and Peak time weighting
• Statistics function
• Display of the sound profile as a graph
• 3 measuring profiles adjustable
• Low inherent noise
• ICCP microphone 40 mV /PA
• Alarm level adjustable

Includes:

• 1 x Outdoor Sound Level Meter PCE-428-EKIT incl. Outdoor Noise Level Meter Kit
• 1 x 1/2" measurement microphone class 2
• 1 x Wind noise suppression (foam ball)
• 1 x USB interface cable
• 1 x Software is a free download
• 1 x Power adapter
• 1 x Suitcase
• 1 x User manual
• 1 x Outdoor Sound Level Meter Kit PCE-4xx-EKIT
• 1 x Waterproof PELI transport case
• 1 x Wind and rain protection for microphone of the PCE-4xx series
• 1 x Charger for internal batteries
• 2 x 12 V lead gel batteries
• 1 x Tripod
• 1 x 2 m / 6ft 6" microphone cable
• 1 x Connection cable for power supply 110 V / 230 V
