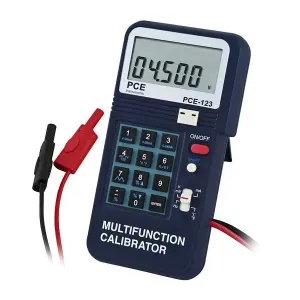

PCE Instruments PCE-123 Current Calibrator with Batteries

The PCE-123 is a network-independent multifunction calibrator used to test and calibrate a variety of parameters of controllers and measuring instruments. Offering a high level of accuracy for an affordable price, this easy-to-use calibrator provides electrical (mA, mV, V and frequency in Hz) and temperature (in °C or °F) output signals, making the calibrator useful in a wide range of applications.

The calibrator also has automatic step and ramp functions as well as the possibility to pre-select the output signal steps (0 … 100 %) by using the arrow keys and to directly specify an output value (e. g. 13.8 mA). Operation via the keypad is very easy and intuitive. The PCE-123 multifunctional calibrator is an important tool in any electronics workshop as well as in any measuring and control department in trade, industry and automation.

Features:

• 4 to 20mA (1kΩ, 24V power)
• 0 to 100.00 mV / 0 to 1,0000V / 0 to 12,000V
• Type-K, J, E, T temperature thermocouple sensors (°C or °F)
• Frequency range 1 to 62,500Hz
• Basic accuracy 0.025 %
• Easy operation via keypad
• Automatic ramp function
• Selectable between 0 to 20mA/ 0 to 24mA
• Input 0 to 100% (mA, mV, V)
• Alarm beep 'open' (mA) or 'short circuit' (mV, V)

Includes:

• 1 x PCE-123 Process calibrator
• 1 x Carrying case
• 1 x Type-k adaptor
• 6 x Batteries
• 1 x Test cables with alligator clips
• 1 x User's manual
