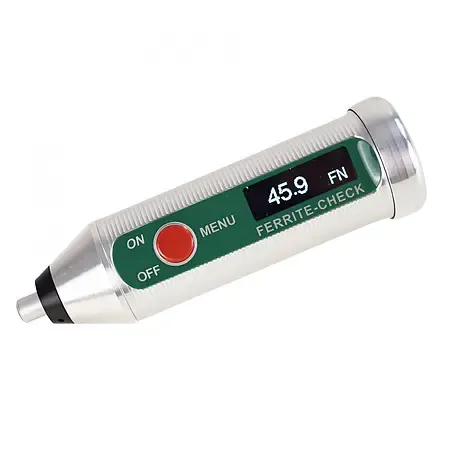

PCE Instruments LM-FC140 Material Tester with Integrated Measuring Probe Basler Standard DIN EN ISO 8249

Material Tester with integrated measuring probe (Ø 2 mm measuring surface) / In accordance with Basler standard DIN EN ISO 8249 / Wireless interface and app connection / OLED display / Multilingual menu.

The Material Tester has an illuminated and high-contrast OLED display on which the measured values are shown in FN and Fe%. The ferrite content measurement is particularly important for welded duplex steels in order to determine whether the weld seam contains sufficient ferrite content to guarantee its strength. If insufficient heat is applied or the weld area cools down too quickly, the ferrite content may be too low.

The ferrite content can be determined precisely and quickly using the Material Tester. In order to recognize the weld seam on smooth or polished surfaces, the ferrite content meter can be switched to continuous measurement. While the probe is moved over the surface, the Material Tester continuously stores measured values and displays the statistics with minimum, maximum and average value after the probe is lifted.

The ferrite content meter is supplied with three calibration standards that are traceably calibrated to the NIST standard. For further processing of your measurement data, you can connect the Material Tester wirelessly to mobile Android or iOS devices as well as to a Windows PC. This is made possible by the integrated wireless technology. The free Lima Connect app can be used to manage projects and assign measuring points to photos. The measurement results can be statistically analyzed and graphically displayed.

Features:

• Measurement of the ferrite content in austenitic and duplex steels
• Measuring range: 1 - 100 Fe%, 1 - 140 FN
• Single measurement or continuous measurement with averaging
• Smallest measuring surface: ø 2 mm
• Measured value memory: 4000 measured values can be flexibly divided up
• Statistics: number / maximum / minimum / mean value / standard deviation
• Wireless interface for communication with Android, iOS and Windows

Includes:

• 1 x Material Tester FERRITE-CHECK 140
• 3 x Calibration standards
• 1 x Spare battery
• 1 x Case
• 1 x Calibration certificate
