Overview

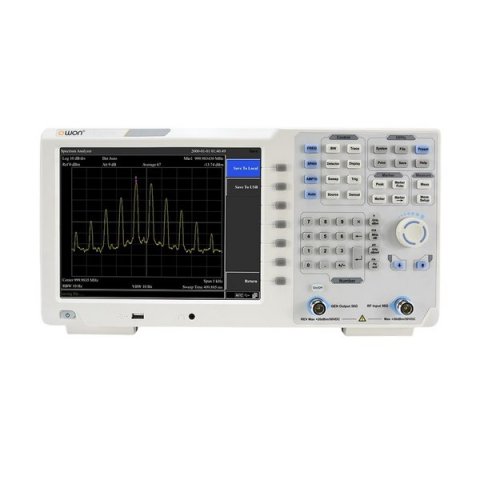

XSA1000TG Series Spectrum Analyzer 1.5GHz Tracking Generator
Features:
- -160dBm Displayed Average Noise Level
- Phase Noise -98dBc/Hz at1Gz and offset at 10KHz
- Total Amplitude Accuracy <1.5dB
- 10Hz Minimum Resolution Bandwidth (RBW)
- EMI Pre-compliance Test Kit, optional EMC test software
- Standard Pass/Fail on-site test alert ability
- Up to 7.5 GHz Tracking Generator Kit
- 10.4 inches display

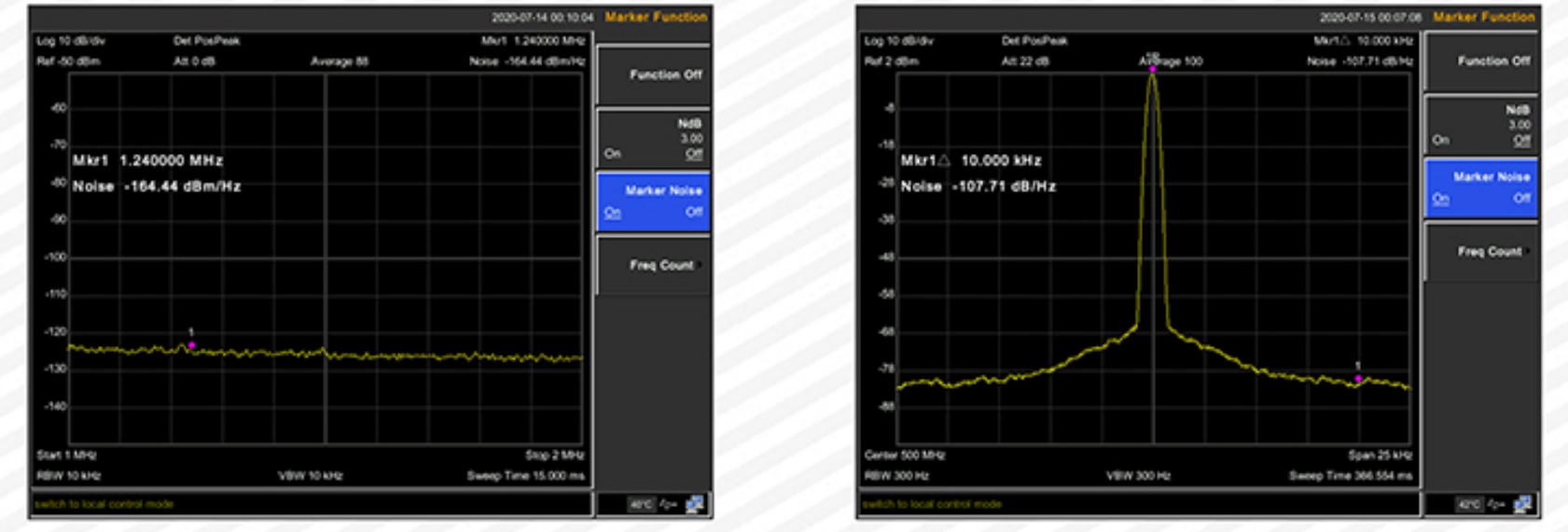

Excellent small signal measurement capability
160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals.
More accurate low-noise measurements
Phase Noise < - 80 dBc/Hz at1GHz at 10 kHz offset.

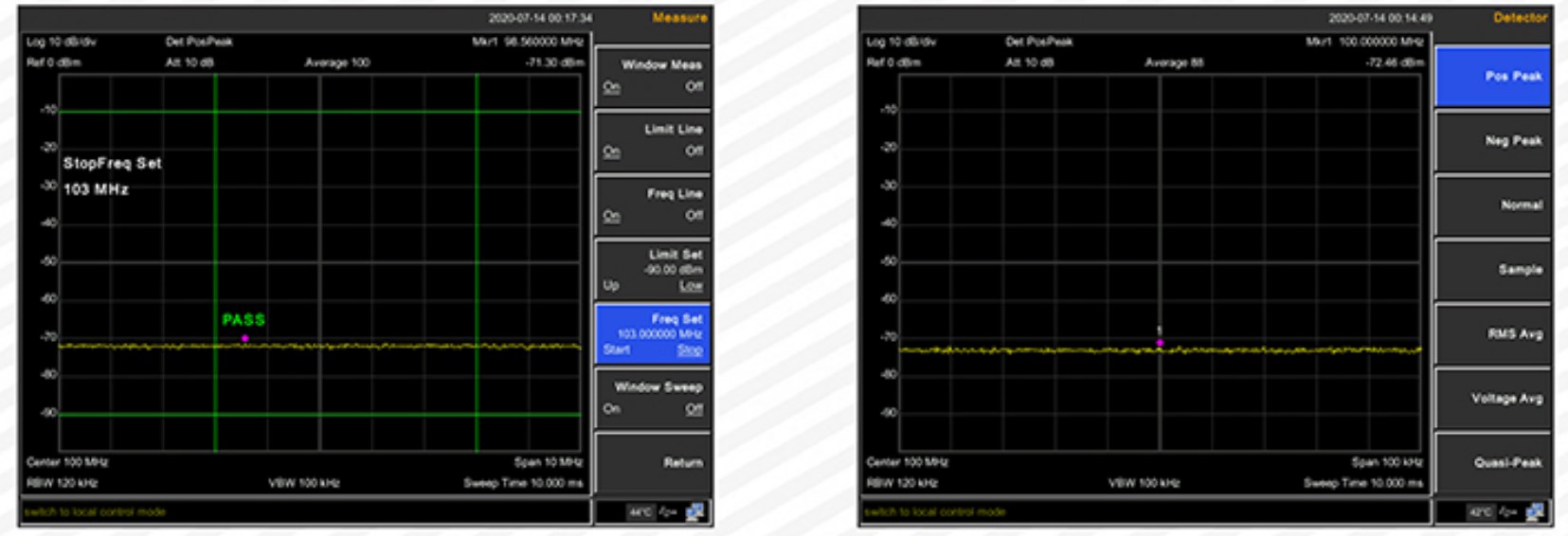

Pass/Fail function
Quickly determine if the test results pass.
Provides EMI pre-compliance test function
Equipped with EMI filter (6dB) and peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production report can be completed by using supporting software.

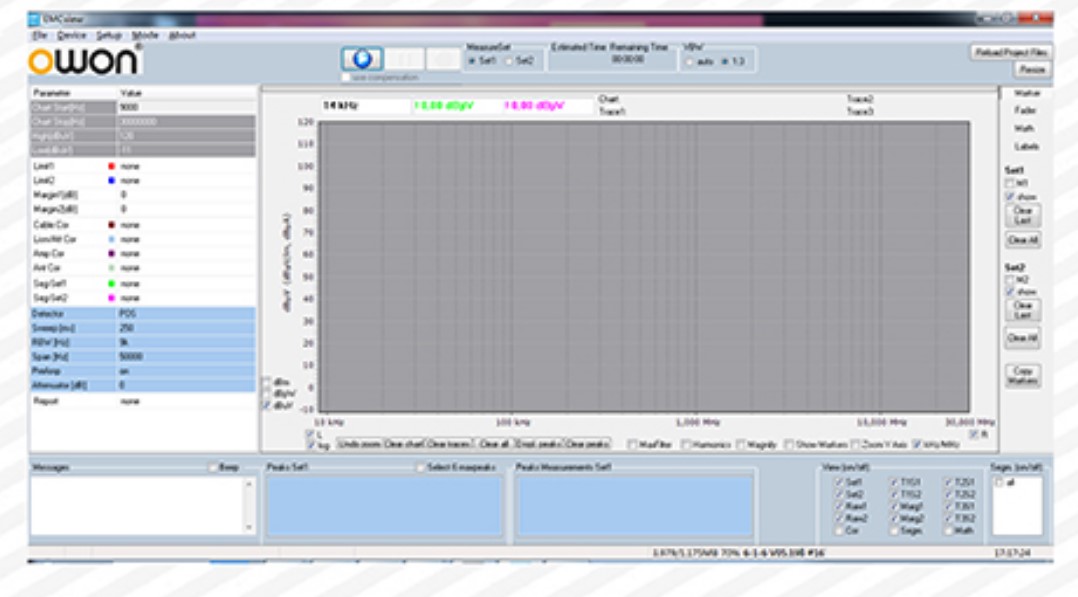

Provide EMC test function on PC (requires optional software)
Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically the test data. The data and regulation can be compared on the same screen. Users can also customize regulations for comparative analysis.

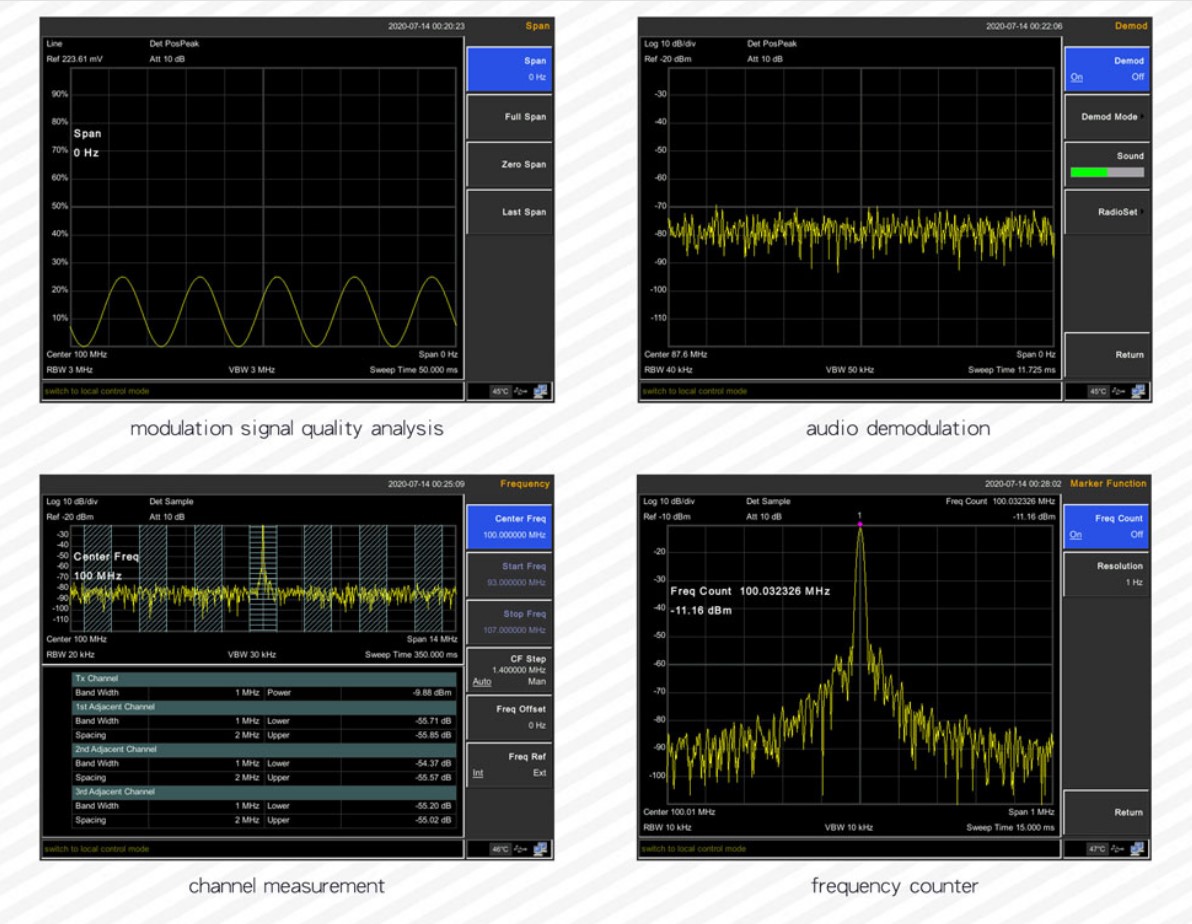

Provide multiple extended function modes
Standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter, ect. multiple general and extended test functions.

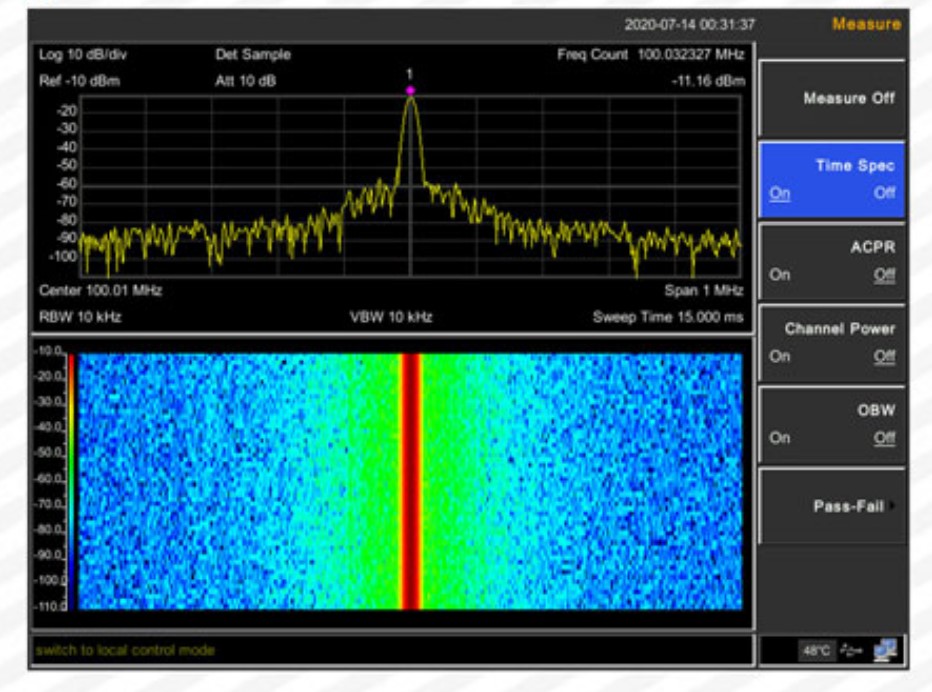

Waterfall plot graphic
View the behavior of varying signal parameters over time, track the frequency and power behavior over the time, particularly intermittent signals. The user can use waterfall plot graphic to analyze the stability of a signal over the time, or to identify intermittent interference signals in communications systems.
Package Includes:
- Power Cord
- Quick Guide
- CD Rom
- N-BNC Adaptor
For more information, please see Specifications and User Manual
