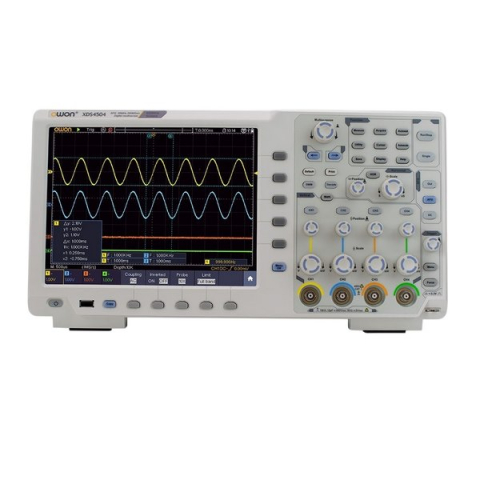

Owon XDS4504 XDS4000 Series 500MHz Digital Oscilloscope 5GSa/s 400M 4 Channel

XDS4000 Series Digital Oscilloscope

Features:

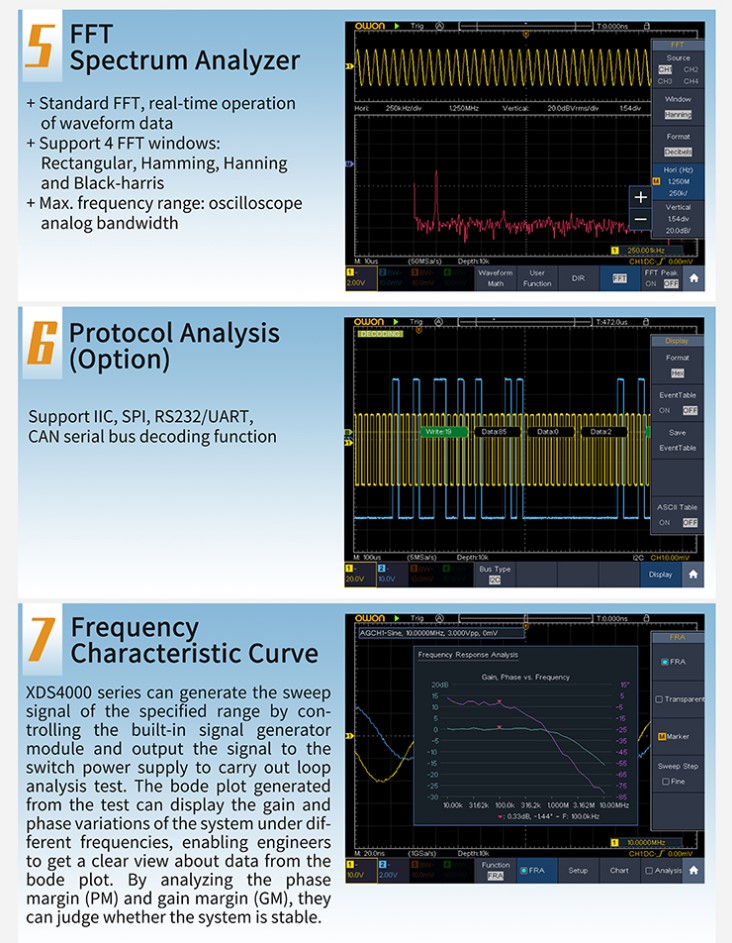

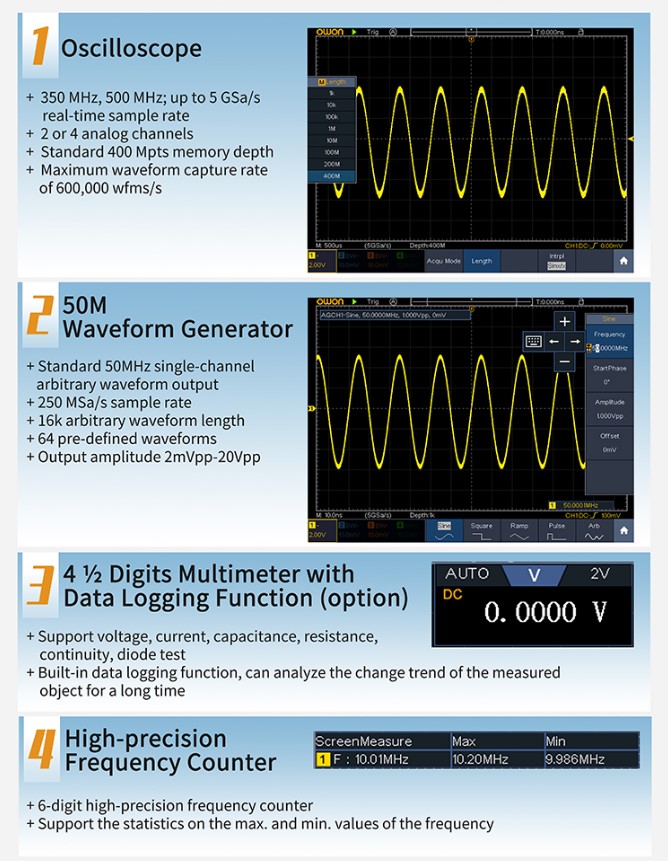

• Including 7 measurement functions in one: oscilloscope, waveform generator, multimeter, FFT spectrum analyzer, frequency counter, protocol analysis, amplitude-frequency curve analysis
• 500 MHz oscilloscope bandwidth, 5 GSa/s sample rate
• Standard 400MB memory depth
• 600,000 wfms/s refresh rate, easy to capture exceptional and low probability events
• Advanced function calculation function
• Standard 50M single-channel arbitrary waveform generator
• The oscilloscope captures the waveform, the waveform generator generates the waveform, help engineers to further analyze the circuit
• Waveform cloning function, quickly generate captured waveforms
• A variety of triggers and bus decodes
• Standard Bode plot for loop test analysis
• Multi-interface design: USB Host & Device, LAN, VGA; USB Host supports standard SCPI
• 10.4-inch multi-touch screen

Super Cost-effective 7-into-1 Integrated Oscilloscope

Large Touch Screen, Excellent Interactive experience

10.4-inch LCD, clear waveform display, the multi-touch screen allows engineers to work more efficiently. The buttons and knobs of the traditional oscilloscope are retained to meet different operating habits.

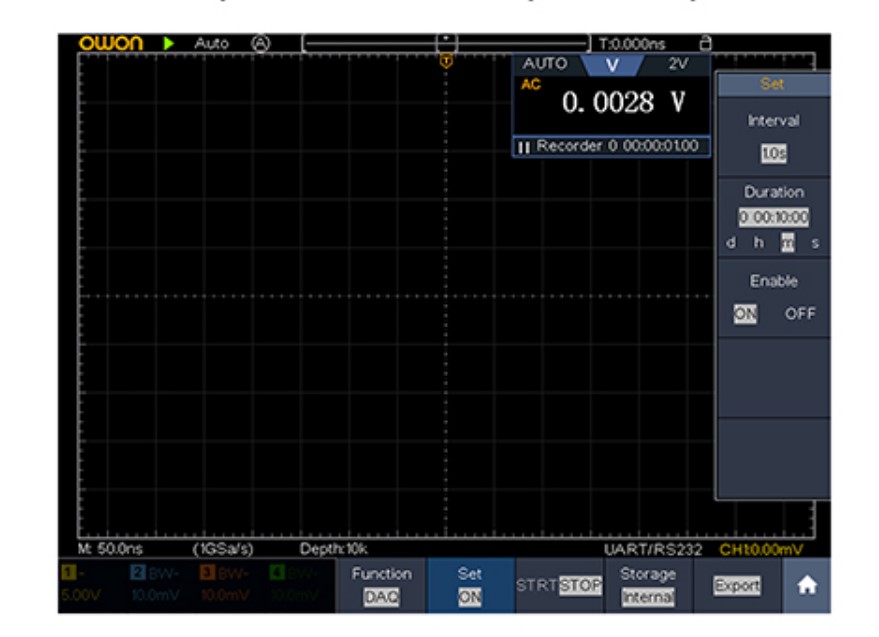

Multimeter with data logger function, make the measurement more accurate

XDS4000 can record the data measured by the multimeter in the internal memory or external U disk, and export the CSV format for further analysis.

The recording sampling interval can be set, ranging from 0.5s to 10s. Maximum duration: 3 days for internal memory and 10 days for external memory.

Package Includes:

• Power Cord
• Quick Guide
• USB Cable
• Probe
• Probe Adjust
• CD Rom
• Current Extension Module
• Q9 Cable

For more information, please see Specifications
