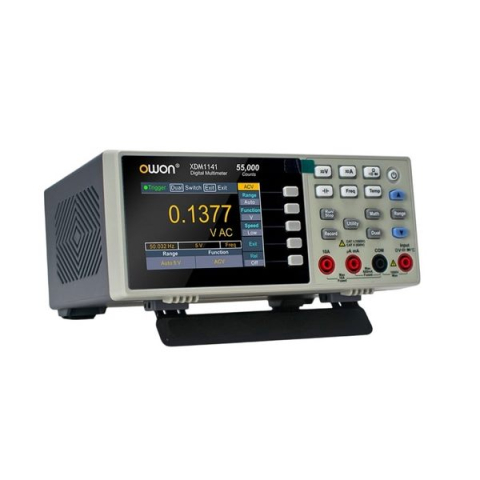

Owon XDM1141 XDM Series 4-1/2 digits Bench-type Digital Multimeter 65 rdgs/s 3.5" LCD USB Device

XDM Series 4-1/2 digits Bench-type Digital Multimeter

Features:

• 3.5 inch (480x320) high resolution LCD
• 55000 counts, DC voltage accuracy up to 0.05%
• Up to 65 readings per second
• Dual line display supported
• SCPI support
• Data record function, you can record the measured data into internal memory, and then read and process the recorded data with your computer

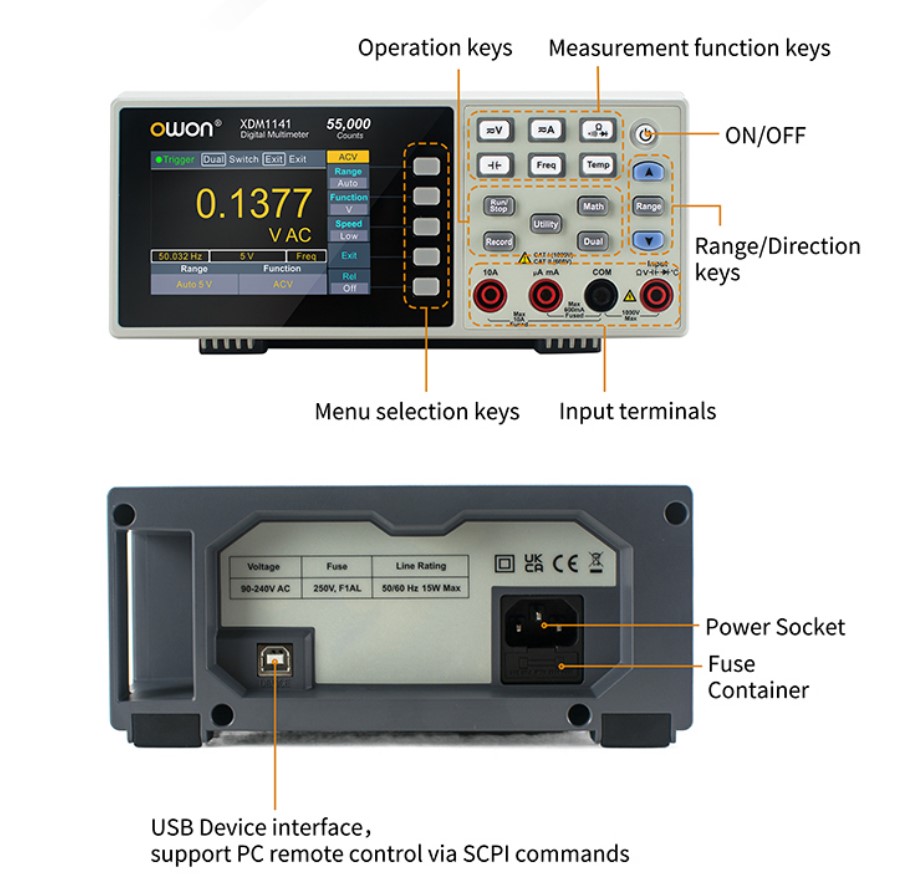

Communicate with computer via USB port

Through the PC software, you can read the measurements, remote control the multimeter, record the data to a table, do statistics and limit calculations. SCPI supported.

Data Record Function

Supports manual or auto recording 1000 data points to the internal memory, auto recording time interval can be set from 15 ms to 9999 s.

Math

The multimeter can do calculations for you (relative, max, min, average, dBm), saving time and effort.

Dual display supported

Supports dual display of AC voltage (or current) and frequency measurements.

Package Includes:

• Power Cord
• Quick Guide
• USB Cable
• Multimeter Leads
• Fuse

For more information, please see User Manual
