Owon VDS6102 VDS6000 Series PC Oscilloscope 8bits 100MHz 1Gs/s 2CHs 10M Record Length Build-in 5Mhz Singal Generator

VDS6000 Series PC Oscilloscope 8-bits100MHz 1Gs/s 2CHs 10M Record Length Build-in 5Mhz Singal Generator

Features:

• Dual-channel, ultra-thin body design.
• 100MHz bandwidth, and 1GSa/s real-time sampling rate.
• Standard built-in 5MHz signal generator.
• Vertical resolution, more accurate measurement.
• Max. 10M record length.
• Friendly UI, X-Y and waveform can be displayed on the same screen.
• Standard SCPI protocol supported, LabVIEW supported.
• Secondary development supported on Windows, Linux, Android, and iOS platform.
• USB Type-C powered, faster data transmission, support 5-15V wide voltage power supply.
• WiFi wireless transmission, more convenient to use.

Ultra-thin and light, easy to travel

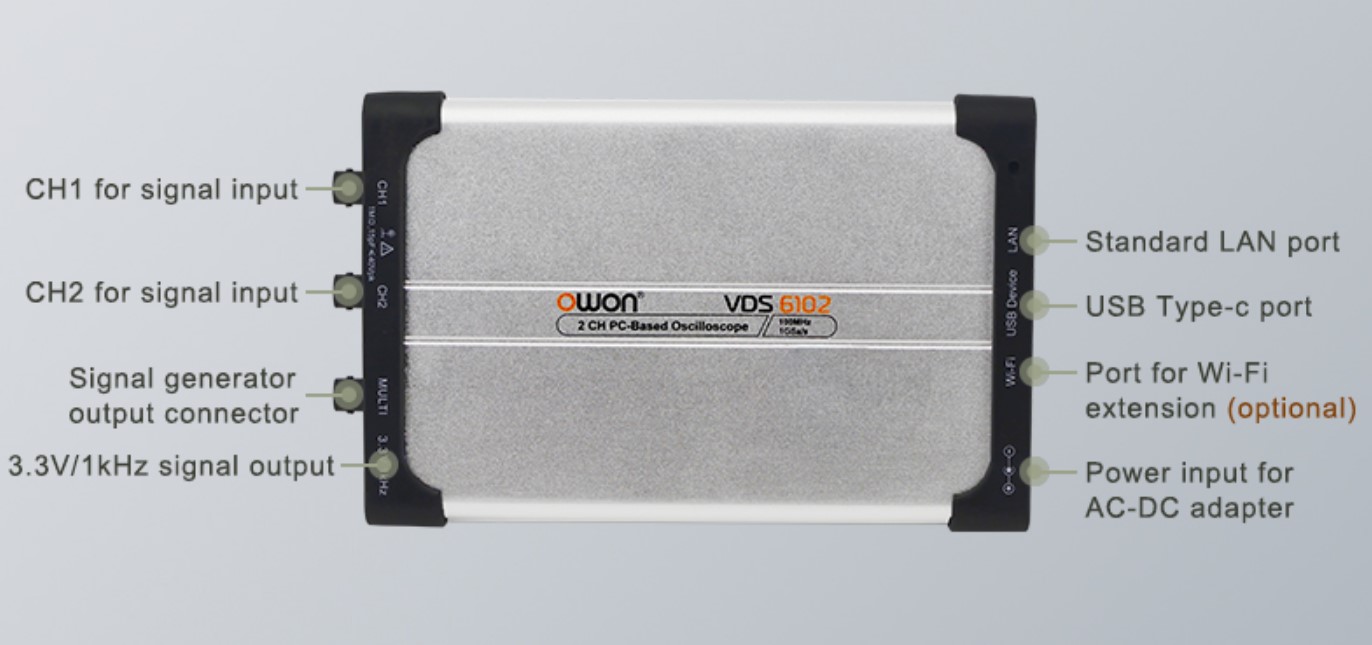

Ports design

Hardware ADC supports up to 14-bit vertical resolution

Measuring accuracy is 64 times that of a normal oscilloscope.

Partially magnified 50 times in the same voltage division (5V/div).

Secondary development supported on multi-platform

Standard SCPI protocol supported LabVIEW supported.

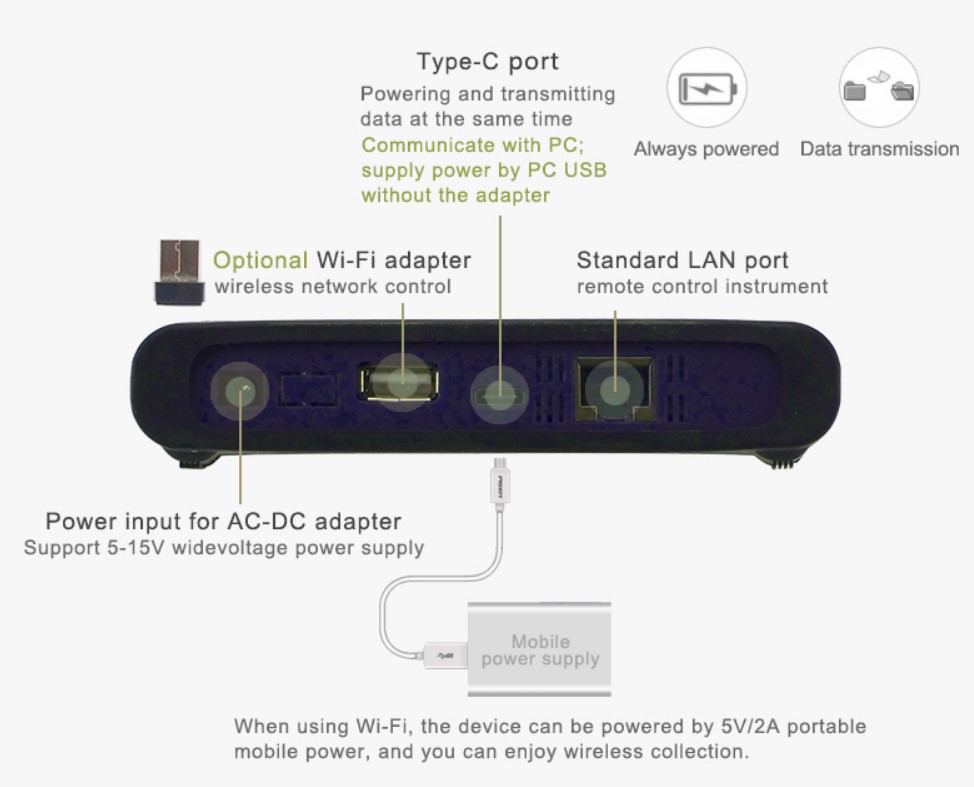

USB Type-C Port

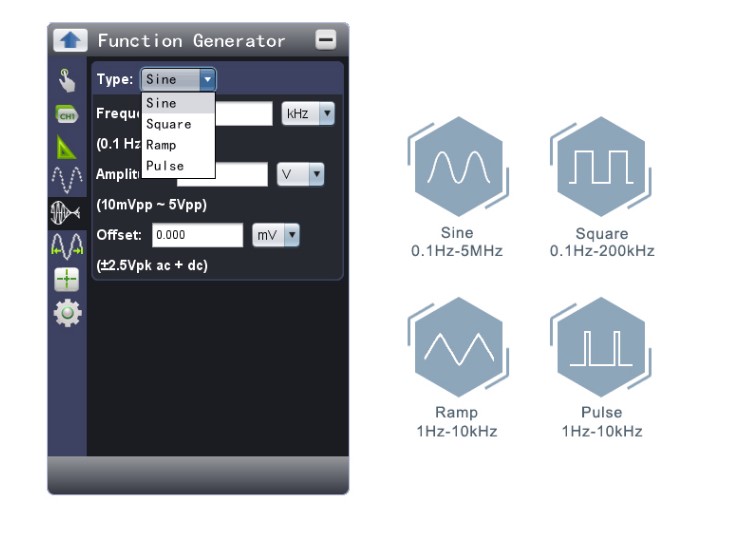

5MHz signal generator provides basic waveform output

One instrument can generate and acquire waveforms simultaneously

Package includes:

• PC Oscilloscope
• Power cord
• AC-DC adapter
• Type-C cable
• Q9 cable
• Probes
• CD
• Packing box

For more information, please see Specifications and User Manual
