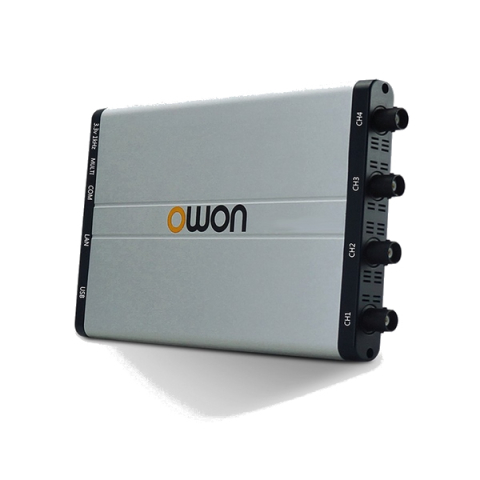

Owon VDS2064L VDS Series PC Oscilloscope 60MHz 1Gs/s 4+1(Multi) CHs 5M Record Length with LAN

VDS Series PC Oscilloscope 60MHz 1Gs/s 4+1(Multi) CHs 5M Record Length with LAN

Features:

• 5M record length
• Friendly UI: FFT, or X-Y, and waveform 2 views displayed on the same screen
• Multi-trigger option: edge, video, slope, pulse, and alternate
• USB isolation - less signal inference, more PC protection
• USB bus powering and LAN remote control
• Ultra-thin body design, easy portability

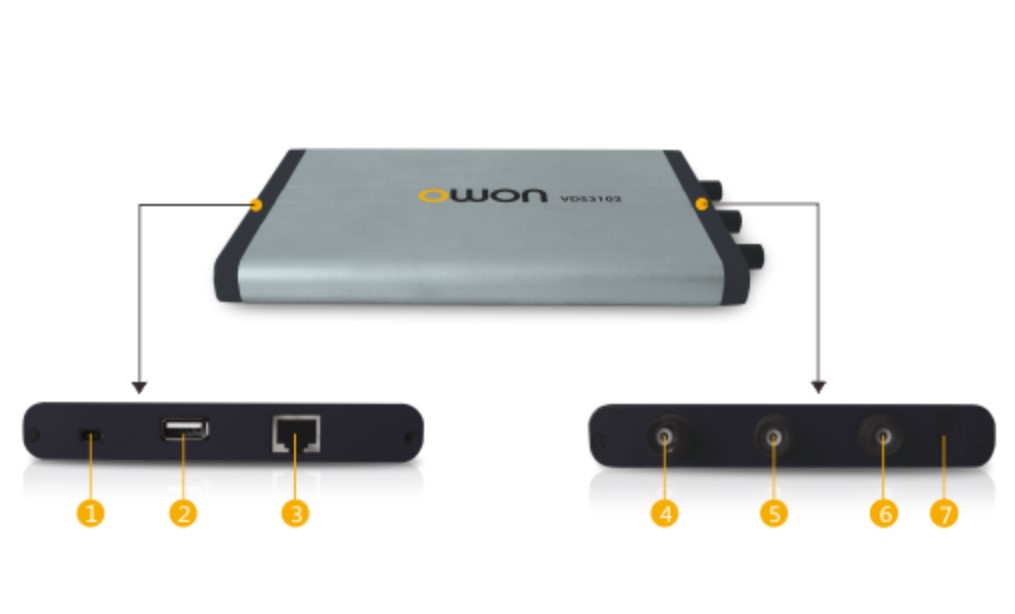

1. Ultra-thin body design, easy portability

1. RS232 port
2. USB port: power supplying via USB bus, communicating with PC
3. LAN port: remote control
4. Channel 1 signal input
5. Channel 2 signal input
6. EXT trigger input, trigger output, or Pass/Fail output
7. Probe compensation: measurement signal (3.3V/1KHz) output

Note: When communicating with PC via LAN, the oscilloscope should be powered by adapter.

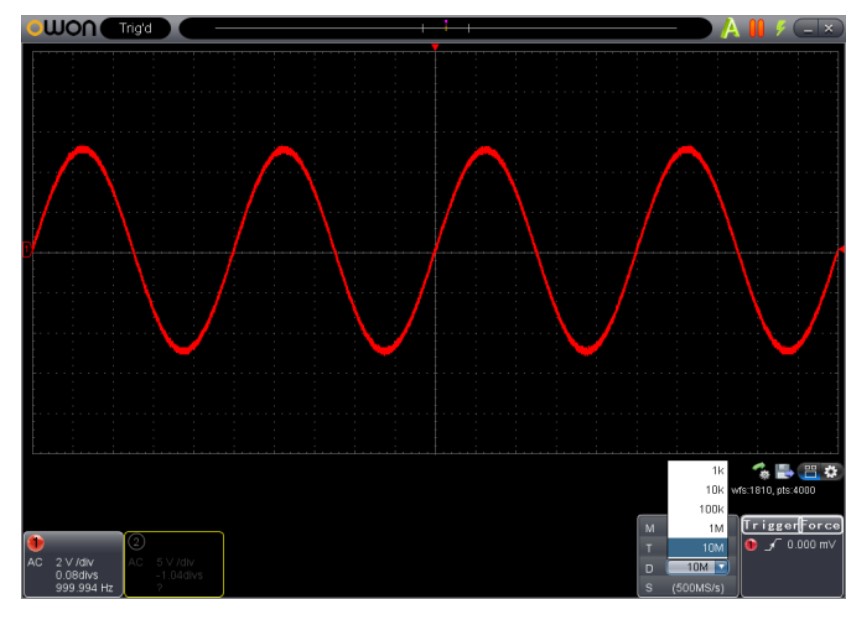

2. Record length 5M

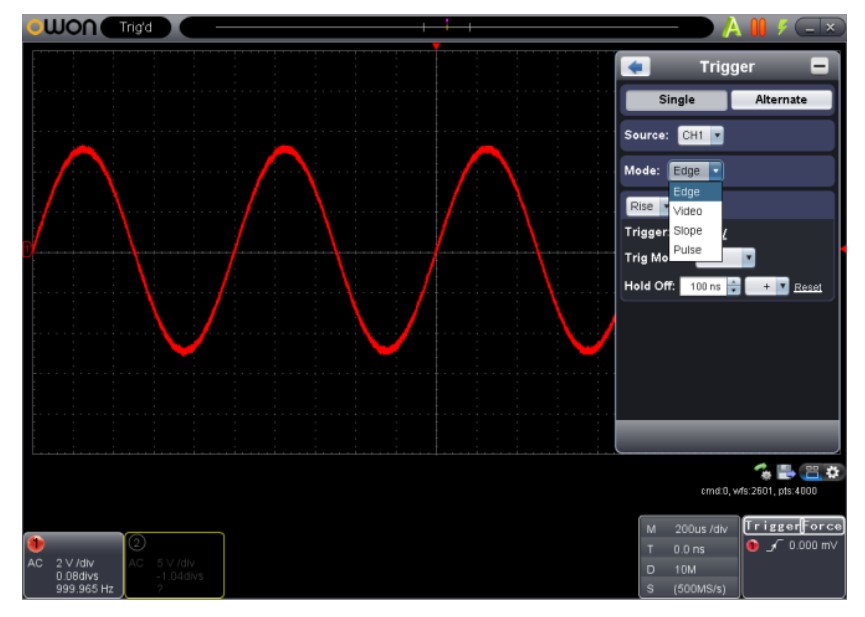

3. Multi-trigger option

Edge, Video, Slope, Pulse, and Alternate

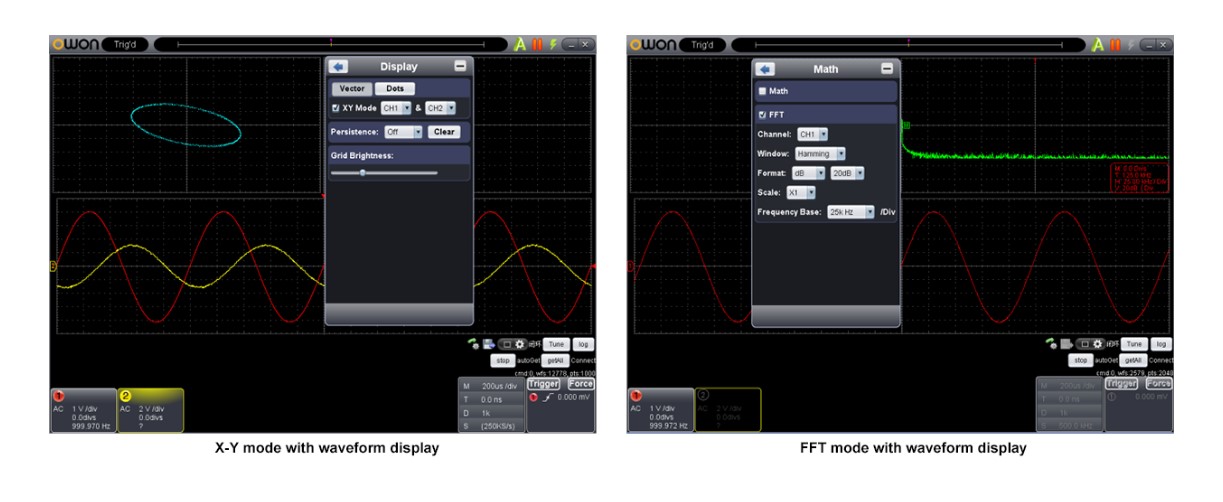

4. X-Y mode, FFT mode with waveform displayed on the same screen

Package Includes:

• Quick Guide
• CD Rom
• USB Cable
• Probe Adjust
• Probe
• USB Cable
• Silicon Gel Case

For more information, please see Specifications
